9C64 | pdb_00009c64

Cytidine deaminase T6S toxin from Pseudomonas syringae complexed with substrate DNA

  • Classification: TOXIN/DNA
  • Organism(s): Pseudomonas syringae
  • Expression System: Escherichia coli
  • Mutation(s): Yes

  • Deposited: 2024-06-07 Released: 2025-11-12
  • Deposition Author(s): Shi, K., Yin, L., Aihara, H.
  • Funding Organization(s): National Institutes of Health/National Cancer Institute (NIH/NCI), National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.94 Å
  • R-Value Free:
    0.190 (Depositor), 0.191 (DCC)
  • R-Value Work:
    0.161 (Depositor), 0.162 (DCC)
  • R-Value Observed:
    0.163 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Structural basis for sequence context-independent single-stranded DNA cytosine deamination by the bacterial toxin SsdA.

Yin, L.Chen, Y.Shi, K.Barreto Duran, E.Harris, R.S.Aihara, H.

(2025) Nat Commun 16: 8841-8841

  • DOI: https://doi.org/10.1038/s41467-025-63943-9
  • Primary Citation of Related Structures:
    9C63, 9C64

  • PubMed Abstract:

    DNA deaminase toxins are involved in interbacterial antagonism and the generation of genetic diversity in surviving bacterial populations. These enzymes have also been adopted as genome engineering tools. The single-stranded (ss)DNA deaminase SsdA is representative of the bacterial deaminase toxin family-2 (BaDTF2), and it deaminates ssDNA cytosines without a strong sequence context dependence, which contrasts with the AID/APOBEC family of sequence-selective ssDNA cytosine deaminases. Here we report the crystal structure of SsdA in complex with a ssDNA substrate. The structure reveals a unique mode of substrate binding, in which a cluster of aromatic residues engages ssDNA in a V-shaped conformation sharply bent across the target cytosine. The bases 5' or 3' to the target cytosine are stacked linearly and make mostly sequence non-specific protein contacts, thus explaining the broad substrate selectivity of SsdA. Unexpectedly, SsdA contains a β-amino acid isoaspartate, which is important for enzymatic activity and contributes to the stability of SsdA as a toxin. Structure-function studies helped to design SsdA mutants active in human cells, which could lead to future applications in genome engineering.


  • Organizational Affiliation
    • Department of Biochemistry, Molecular Biology and Biophysics, University of Minnesota, Minneapolis, MN, USA.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

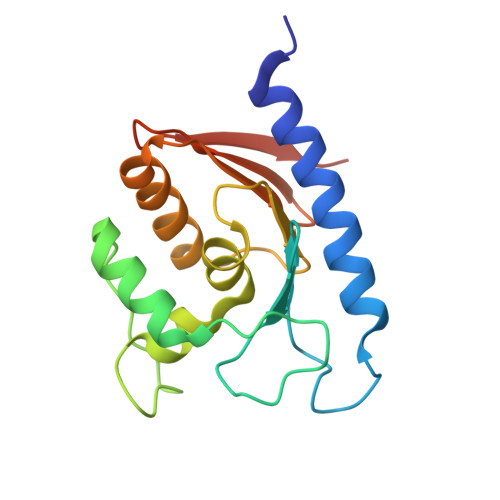

SsdA
A, B
162Pseudomonas syringaeMutation(s): 1
UniProt
Find proteins for A0A0Q0DAS4 (Pseudomonas syringae pv. aptata)
Explore A0A0Q0DAS4
Go to UniProtKB:  A0A0Q0DAS4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0Q0DAS4
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 2
MoleculeChains LengthOrganismImage

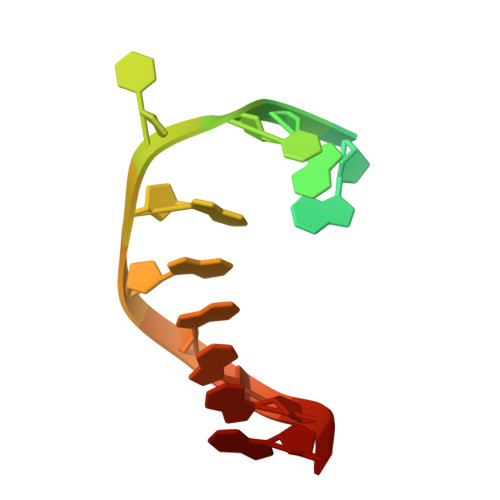

DNA (5'-D(*AP*AP*AP*AP*AP*AP*TP*CP*GP*AP*AP*AP*AP*AP*A)-3')
C, D
15Pseudomonas syringae
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.94 Å
  • R-Value Free:  0.190 (Depositor), 0.191 (DCC)
  • R-Value Work:  0.161 (Depositor), 0.162 (DCC)
  • R-Value Observed: 0.163 (Depositor)
Space Group: P 61
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 87.919α = 90
b = 87.919β = 90
c = 134.482γ = 120
Software Package:
Software NamePurpose
PHENIXrefinement
Aimlessdata scaling
PHASERphasing
XDSdata reduction

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Cancer Institute (NIH/NCI)United StatesP01-CA234228 NCI
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesGM118047

Revision History  (Full details and data files)

  • Version 1.0: 2025-11-12
    Type: Initial release
