9GTG | pdb_00009gtg

RIPK1 in complex with AZ"902


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.25 Å
  • R-Value Free:
    0.295 (Depositor), 0.293 (DCC)
  • R-Value Work:
    0.217 (Depositor), 0.227 (DCC)
  • R-Value Observed:
    0.221 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history


Literature

Discovery and Validation of a Novel Class of Necroptosis Inhibitors Targeting RIPK1.

Soday, L.Seripracharat, C.Gray, J.L.Luz, A.F.S.Howard, R.T.Singh, R.Burden, T.J.Bernardini, E.Mateus-Pinheiro, M.Petersen, J.Gunnarsson, A.Gunnarsson, J.Aagaard, A.Sjogren, T.Maslen, S.Bartlett, E.J.Iles, A.F.Smith, D.M.Scott, J.S.Skehel, M.Davis, A.M.Ressurreicao, A.S.Moreira, R.Rodrigues, C.M.P.Shenoy, A.R.Tate, E.W.

(2025) ACS Chem Biol

  • DOI: https://doi.org/10.1021/acschembio.5c00112
  • Primary Citation of Related Structures:
    9GTG

  • PubMed Abstract:

    Necroptosis is a form of programmed cell death that, when dysregulated, is associated with cancer and inflammatory and neurodegenerative diseases. Here, starting from hits identified from a phenotypic high-throughput screen for inhibitors of necroptosis, we synthesized a library of compounds containing a 7-phenylquinoline motif and validated their anti-necroptotic activity in a novel live-cell assay. Based on these data, we designed an optimized photoaffinity probe for target engagement studies and through biochemical and cell-based assays established receptor-interacting kinase 1 (RIPK1) as the cellular target, with inhibition of necroptosis arising from the prevention of RIPK1 autophosphorylation and activation. X-ray crystallography and mass spectrometry revealed that these compounds bind at the hinge region of the active conformation of RIPK1, establishing them as type I kinase inhibitors. In addition, we demonstrated in vitro synergy with type III kinase inhibitors, such as necrostatin-1 and found that lead compounds protected mice against acute inflammation in necroptosis models in vivo . Overall, we present a novel pharmacophore for inhibition of human RIPK1, a key protein involved in necroptosis, and provide a photoaffinity probe to explore RIPK1 target engagement in cells.


  • Organizational Affiliation

    Department of Chemistry, Molecular Sciences Research Hub, Imperial College London, London W12 0BZ, U.K.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

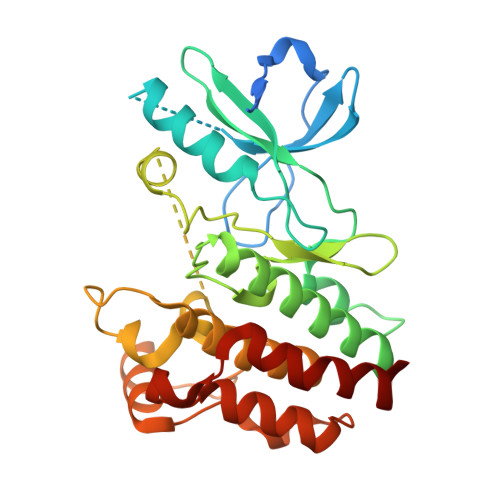

Receptor-interacting serine/threonine-protein kinase 1
A, B
313Homo sapiensMutation(s): 0
Gene Names: RIPK1RIPRIP1
EC: 2.7.11.1
UniProt & NIH Common Fund Data Resources
Find proteins for Q13546 (Homo sapiens)
Explore Q13546
Go to UniProtKB:  Q13546
PHAROS:  Q13546
GTEx:  ENSG00000137275
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ13546
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.25 Å
  • R-Value Free:  0.295 (Depositor), 0.293 (DCC)
  • R-Value Work:  0.217 (Depositor), 0.227 (DCC)
  • R-Value Observed: 0.221 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 47.084α = 90
b = 96.491β = 90
c = 129.002γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
Aimlessdata scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data

  • Released Date: 2025-07-02
  • Deposition Author(s): Petersen, J.

Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2025-07-02
    Type: Initial release
