9HGK | pdb_00009hgk

Crystal Structure of the Coxiella burnetii 2-methylisocitrate lyase


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.60 Å
  • R-Value Free:
    0.299 (Depositor), 0.299 (DCC)
  • R-Value Work:
    0.235 (Depositor), 0.235 (DCC)
  • R-Value Observed:
    0.238 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Structure and catalytic mechanism of methylisocitrate lyase, a potential drug target against Coxiella burnetii.

Stuart, W.S.Jenkins, C.H.Ireland, P.M.Isupov, M.N.Norville, I.H.Harmer, N.J.

(2025) J Biological Chem 301: 108517-108517

  • DOI: https://doi.org/10.1016/j.jbc.2025.108517
  • Primary Citation of Related Structures:
    9HGK, 9HGO, 9HGQ, 9HHS, 9HHY, 9HRA

  • PubMed Abstract:

    We present a comprehensive investigation into the catalytic mechanism of methylisocitrate lyase, a potential drug target candidate against the zoonotic pathogen Coxiella burnetii, the causative agent of Q fever and a federal select agent. Current treatment regimens are prolonged, often with incomplete clearance of the pathogen. We utilized a structure-based bioinformatics pipeline to identify methylisocitrate lyase as a candidate therapeutic target against C. burnetii from a list of essential genes. WT C. burnetii methylisocitrate lyase has a k cat of 13.8 s -1 (compared to 105 s -1 for Salmonella enterica), and isocitrate inhibits with a K I of 11 mM. We have determined the previously uncharacterized substrate-bound structure of this enzyme family, alongside product and inhibitor-bound structures. These structures of WT enzyme reveal that in the active state the catalytic C118 is positioned 2.98 Å from O5 of methylisocitrate and Arg152 moves toward the substrate relative to the inhibitor bound structure. Analysis of structure-based mutants reveals that Arg152 and Glu110 are both essential for catalysis. We suggest that Arg152 acts as the catalytic base that initiates the methylisocitrate lyase reaction. These results deepen our understanding of the catalytic mechanism of methylisocitrate lyase and could aid the development of new therapeutics against C. burnetii.


  • Organizational Affiliation
    • Living Systems Institute, University of Exeter, Exeter, UK; Department of Biosciences, University of Exeter, Exeter, UK.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure

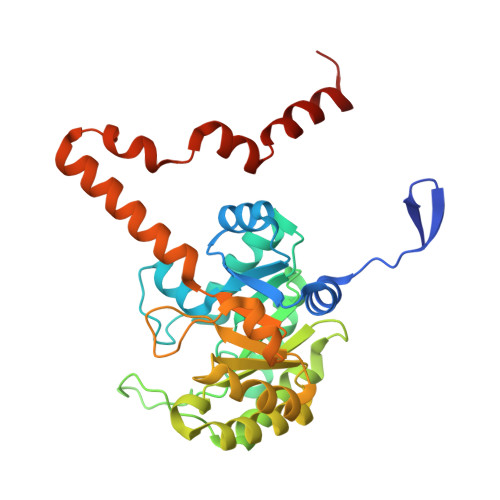

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
2-methylisocitrate lyase
A, B
312Coxiella burnetiiMutation(s): 0
Gene Names: prpBCBU_0771
EC: 4.1.3.30
UniProt
Find proteins for Q83DG5 (Coxiella burnetii (strain RSA 493 / Nine Mile phase I))
Explore Q83DG5
Go to UniProtKB:  Q83DG5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ83DG5
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
EPE
Query on EPE

Download Ideal Coordinates CCD File
C [auth A],
H [auth B]
4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
C8 H18 N2 O4 S
JKMHFZQWWAIEOD-UHFFFAOYSA-N
PEG
Query on PEG

Download Ideal Coordinates CCD File
F [auth A]DI(HYDROXYETHYL)ETHER
C4 H10 O3
MTHSVFCYNBDYFN-UHFFFAOYSA-N
EDO
Query on EDO

Download Ideal Coordinates CCD File
D [auth A],
E [auth A],
I [auth B],
J [auth B],
K [auth B]
1,2-ETHANEDIOL
C2 H6 O2
LYCAIKOWRPUZTN-UHFFFAOYSA-N
CL
Query on CL

Download Ideal Coordinates CCD File
G [auth A]CHLORIDE ION
Cl
VEXZGXHMUGYJMC-UHFFFAOYSA-M
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.60 Å
  • R-Value Free:  0.299 (Depositor), 0.299 (DCC)
  • R-Value Work:  0.235 (Depositor), 0.235 (DCC)
  • R-Value Observed: 0.238 (Depositor)
Space Group: P 31 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 74.96α = 90
b = 74.96β = 90
c = 183.99γ = 120
Software Package:
Software NamePurpose
REFMACrefinement
xia2data reduction
DIALSdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Biotechnology and Biological Sciences Research Council (BBSRC)United KingdomBB/M009122/1

Revision History  (Full details and data files)

  • Version 1.0: 2025-08-13
    Type: Initial release
