9ILE | pdb_00009ile

Crystal Structure of SME-1 Carbapenemase in Complex with Relebactam

PDB DOI: https://doi.org/10.2210/pdb9ILE/pdb

Classification: HYDROLASE
Organism(s): Serratia marcescens
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2024-06-29 Released: 2025-07-02
Deposition Author(s): Dhankhar, K., Hazra, S.
Funding Organization(s): Indian Council of Medical Research, Board of Research in Nuclear Sciences (BRNS)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.38 Å
R-Value Free:
0.256 (Depositor), 0.259 (DCC)
R-Value Work:
0.165 (Depositor), 0.167 (DCC)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Crystal Structure of SME-1 Carbapenemase in Complex with Relebactam

Dhankhar, K., Hazra, S.

To be published.

Macromolecule Content

Total Structure Weight: 31.26 kDa
Atom Count: 2,168
Modeled Residue Count: 267
Deposited Residue Count: 275
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1

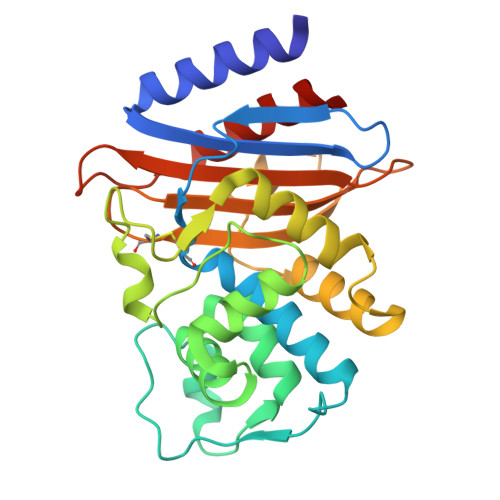

Molecule	Chains	Sequence Length	Organism	Details	Image
beta-lactamase	A	275	Serratia marcescens	Mutation(s): 0 Gene Names: sme-2, blaSME-1, blaSME-4, blaSME1, SME12620_22 EC: 3.5.2.6
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 5 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
MK7 (Subject of Investigation/LOI) Query on MK7 Download Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	(2S,5R)-1-formyl-N-(piperidin-4-yl)-5-[(sulfooxy)amino]piperidine-2-carboxamide C₁₂ H₂₂ N₄ O₆ S VGHMECNLFQGIJM-MNOVXSKESA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]
PG4 (Subject of Investigation/LOI) Query on PG4 Download Ideal Coordinates CCD File SDF format, chain D [auth A] MOL2 format, chain D [auth A] mmCIF format, chain D [auth A]	D [auth A]	TETRAETHYLENE GLYCOL C₈ H₁₈ O₅ UWHCKJMYHZGTIT-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Interactions & Density Focus chain D [auth A]
PEG (Subject of Investigation/LOI) Query on PEG Download Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain E [auth A] MOL2 format, chain C [auth A] MOL2 format, chain E [auth A] mmCIF format, chain C [auth A] mmCIF format, chain E [auth A]	C [auth A], E [auth A]	DI(HYDROXYETHYL)ETHER C₄ H₁₀ O₃ MTHSVFCYNBDYFN-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain E [auth A] Interactions & Density Focus chain C [auth A] Focus chain E [auth A]
EDO (Subject of Investigation/LOI) Query on EDO Download Ideal Coordinates CCD File SDF format, chain F [auth A] MOL2 format, chain F [auth A] mmCIF format, chain F [auth A]	F [auth A]	1,2-ETHANEDIOL C₂ H₆ O₂ LYCAIKOWRPUZTN-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Interactions & Density Focus chain F [auth A]
CL (Subject of Investigation/LOI) Query on CL Download Ideal Coordinates CCD File SDF format, chain G [auth A] MOL2 format, chain G [auth A] mmCIF format, chain G [auth A]	G [auth A]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain G [auth A] Interactions & Density Focus chain G [auth A]
