9KDN | pdb_00009kdn

The structure of 1 ACTD bound to RNA polymerase II elongation complex with 2 CTG repeats.

PDB DOI: https://doi.org/10.2210/pdb9KDN/pdb
EM Map EMD-62282: EMDB EMDataResource

Classification: TRANSCRIPTION
Organism(s): Saccharomyces cerevisiae S288C, Streptomyces sp., synthetic construct
Mutation(s): No

Deposited: 2024-11-03 Released: 2025-11-12
Deposition Author(s): Xu, J., Zhao, W., Zhu, L.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.96 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

The structure of 1 ACTD bound to RNA polymerase II elongation complex with 2 CTG repeats

Xu, J., Zhao, W., Zhu, L.

To be published.

Macromolecule Content

Total Structure Weight: 548.01 kDa
Atom Count: 33,014
Modeled Residue Count: 4,054
Deposited Residue Count: 4,680
Unique protein chains: 13
Unique nucleic acid chains: 3

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

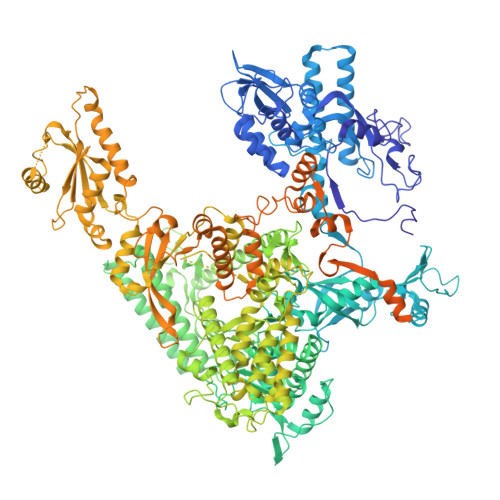

DNA-directed RNA polymerase II subunit RPB1	A	1,733	Saccharomyces cerevisiae S288C	Mutation(s): 0 EC: 2.7.7.6
UniProt
Find proteins for P04050 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P04050 Go to UniProtKB: P04050
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P04050
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

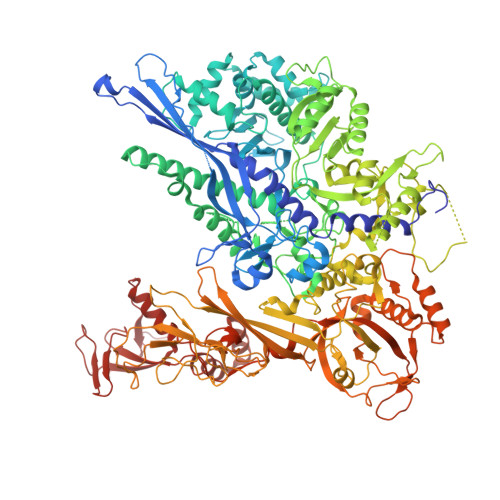

DNA-directed RNA polymerase II subunit RPB2	B	1,224	Saccharomyces cerevisiae S288C	Mutation(s): 0 EC: 2.7.7.6
UniProt
Find proteins for P08518 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P08518 Go to UniProtKB: P08518
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P08518
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

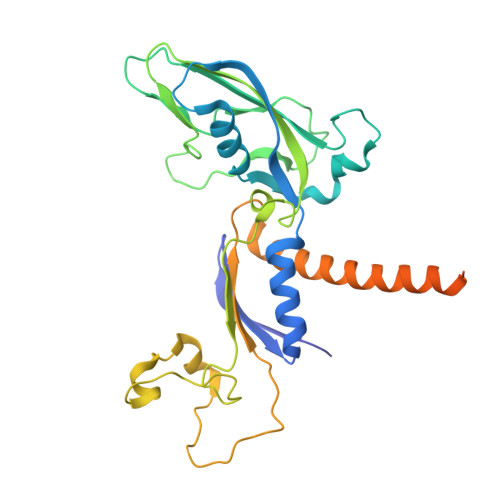

DNA-directed RNA polymerase II subunit RPB3	C	318	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P16370 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P16370 Go to UniProtKB: P16370
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P16370
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

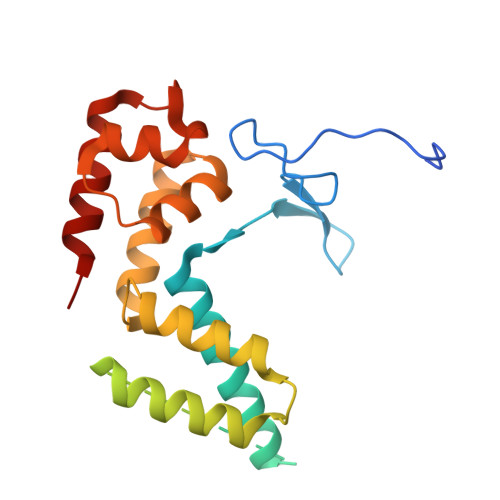

DNA-directed RNA polymerase II subunit RPB4	D	221	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P20433 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P20433 Go to UniProtKB: P20433
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P20433
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

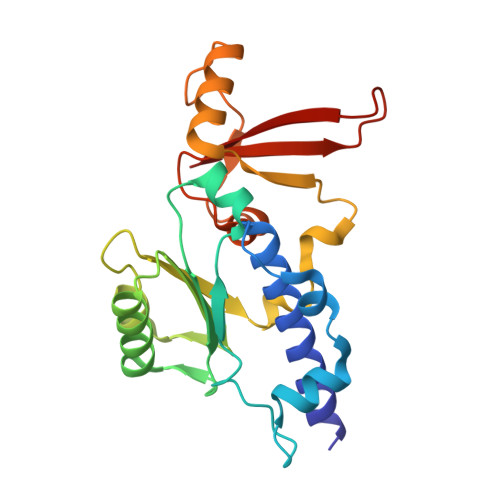

DNA-directed RNA polymerases I, II, and III subunit RPABC1	E	215	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P20434 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P20434 Go to UniProtKB: P20434
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P20434
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image

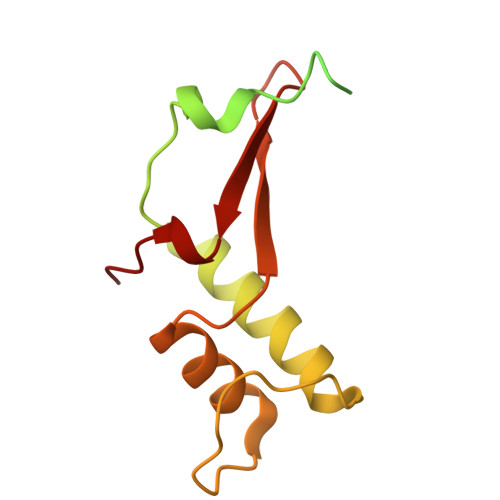

DNA-directed RNA polymerases I, II, and III subunit RPABC2	F	155	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P20435 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P20435 Go to UniProtKB: P20435
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P20435
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image

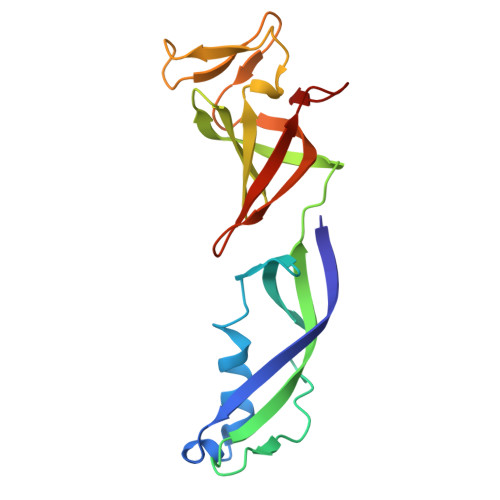

DNA-directed RNA polymerase II subunit RPB7	G	171	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P34087 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P34087 Go to UniProtKB: P34087
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P34087
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image

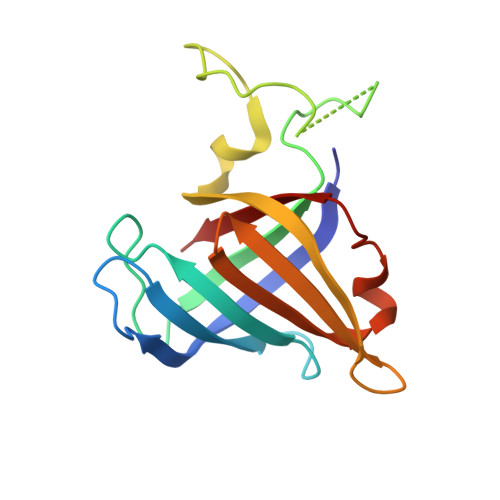

DNA-directed RNA polymerases I, II, and III subunit RPABC3	H	146	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P20436 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P20436 Go to UniProtKB: P20436
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P20436
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image
DNA-directed RNA polymerase II subunit RPB9	I	122	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P27999 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P27999 Go to UniProtKB: P27999
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P27999
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image

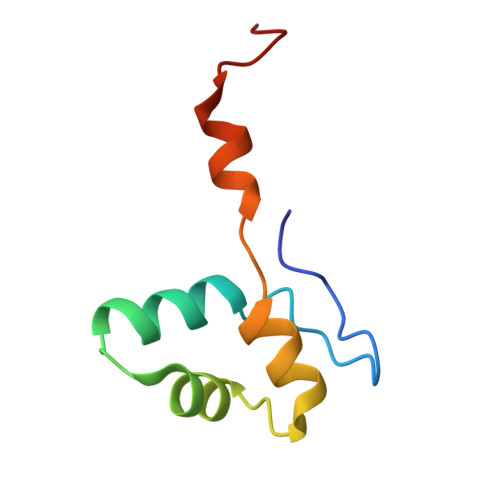

DNA-directed RNA polymerases I, II, and III subunit RPABC5	J	70	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P22139 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P22139 Go to UniProtKB: P22139
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P22139
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image

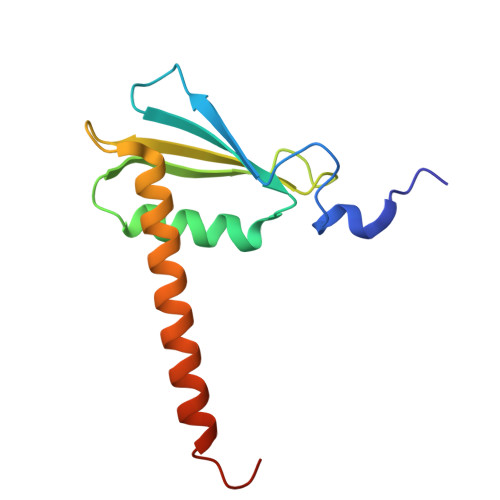

DNA-directed RNA polymerase II subunit RPB11	K	120	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P38902 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P38902 Go to UniProtKB: P38902
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P38902
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 12
Molecule	Chains	Sequence Length	Organism	Details	Image

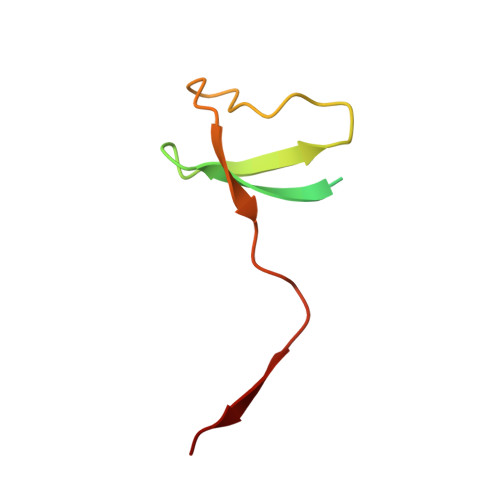

DNA-directed RNA polymerases I, II, and III subunit RPABC4	L	70	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P40422 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P40422 Go to UniProtKB: P40422
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P40422
Sequence Annotations Expand
Reference Sequence

Find similar proteins by: Sequence | 3D Structure

Entity ID: 13
Molecule	Chains	Sequence Length	Organism	Details	Image

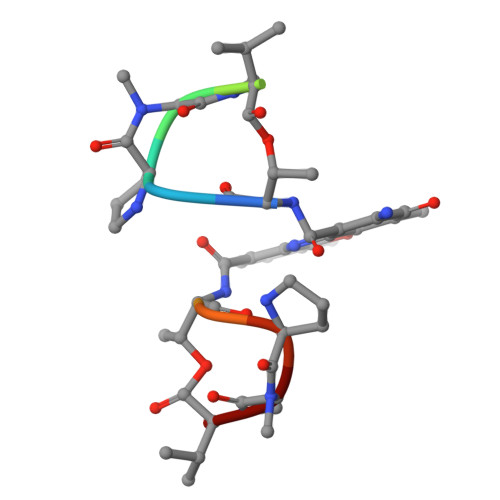

Actinomycin D	M	11	Streptomyces sp.	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff) | 3D Structure

Entity ID: 14
Molecule	Chains	Length	Organism	Image
NTS(non-template strand)	N	46	synthetic construct
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by: Sequence | 3D Structure

Entity ID: 15
Molecule	Chains	Length	Organism	Image
RNA (5'-R(CPCPCPUPAPAPGPAPGPUPAPC)-3')	O [auth P]	12	synthetic construct
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff) | 3D Structure

Entity ID: 16
Molecule	Chains	Length	Organism	Image

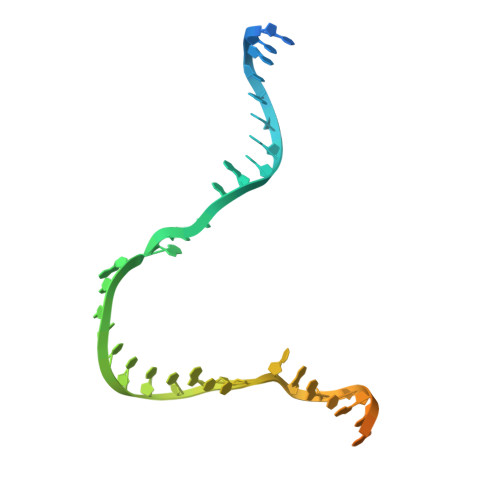

TS(template strand)	P [auth T]	46	synthetic construct
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ZN Query on ZN Download Ideal Coordinates CCD File SDF format, chain Q [auth A] SDF format, chain R [auth A] SDF format, chain T [auth B] SDF format, chain U [auth C] SDF format, chain V [auth I] SDF format, chain W [auth I] SDF format, chain X [auth J] SDF format, chain Y [auth L] MOL2 format, chain Q [auth A] MOL2 format, chain R [auth A] MOL2 format, chain T [auth B] MOL2 format, chain U [auth C] MOL2 format, chain V [auth I] MOL2 format, chain W [auth I] MOL2 format, chain X [auth J] MOL2 format, chain Y [auth L] mmCIF format, chain Q [auth A] mmCIF format, chain R [auth A] mmCIF format, chain T [auth B] mmCIF format, chain U [auth C] mmCIF format, chain V [auth I] mmCIF format, chain W [auth I] mmCIF format, chain X [auth J] mmCIF format, chain Y [auth L]	Q [auth A] R [auth A] T [auth B] U [auth C] V [auth I] Q [auth A], R [auth A], T [auth B], U [auth C], V [auth I], W [auth I], X [auth J], Y [auth L]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain Q [auth A] Focus chain R [auth A] Focus chain T [auth B] Focus chain U [auth C] Focus chain V [auth I] Focus chain W [auth I] Focus chain X [auth J] Focus chain Y [auth L] Interactions & Density Focus chain Q [auth A] Focus chain R [auth A] Focus chain T [auth B] Focus chain U [auth C] Focus chain V [auth I] Focus chain W [auth I] Focus chain X [auth J] Focus chain Y [auth L]
MG Query on MG Download Ideal Coordinates CCD File SDF format, chain S [auth A] MOL2 format, chain S [auth A] mmCIF format, chain S [auth A]	S [auth A]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain S [auth A] Interactions & Density Focus chain S [auth A]

Modified Residues 2 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
MVA Query on MVA	M	L-PEPTIDE LINKING	C₆ H₁₃ N O₂		VAL
SAR Query on SAR	M	PEPTIDE LINKING	C₃ H₇ N O₂		GLY

Biologically Interesting Molecules (External Reference) 1 Unique

Entity ID: 13
ID	Chains	Name	Type/Class	2D Diagram	3D Interactions
PRD_000001 Query on PRD_000001	M	Actinomycin D	Polypeptide / Antibiotic		Interactions Focus chain M Interactions & Density Focus chain M
