9OIM | pdb_00009oim

The von Hippel Lindau-ElonginB-ElonginC (VCB) complex with fragment 9


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.61 Å
  • R-Value Free:
    0.283 (Depositor), 0.288 (DCC)
  • R-Value Work:
    0.225 (Depositor), 0.229 (DCC)
  • R-Value Observed:
    0.228 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

NMR-Based Fragment Screen of the von Hippel-Lindau Elongin C&B Complex.

Amporndanai, K.Katinas, J.M.Chopra, A.Kayode, O.Vadukoot, A.K.Waterson, A.G.Fesik, S.W.

(2025) ACS Med Chem Lett 16: 1648-1654

  • DOI: https://doi.org/10.1021/acsmedchemlett.5c00316
  • Primary Citation of Related Structures:
    9OIM, 9OIN, 9OIO, 9OIQ

  • PubMed Abstract:

    von Hippel-Lindau (VHL) is an E3 ligase that has been widely exploited for the development of PROTACs to induce degradation of disease-associated target proteins. Nearly all VHL-recruiting PROTACs contain a hydroxyproline moiety based on the endogenous peptide substrate that occupies the HIF1α-binding site of VHL. However, the development of orally bioavailable PROTACs with hydroxyproline-based VHL ligands remains a significant hurdle, due to both the hydroxyproline and the peptidic nature of the VHL ligand. Here, we describe an NMR-based fragment screen against the VHL-Elongin C-Elongin B (VCB) complex. Several hits were shown by X-ray crystallography to bind to the HIF1α active site in VHL of the VCB complex, which opens the possibility for the discovery of new nonhydroxyproline-based VHL ligands for use in VHL-recruiting PROTACs.


  • Organizational Affiliation
    • Department of Biochemistry, Vanderbilt University School of Medicine, Nashville, Tennessee 37232-0146, United States.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Elongin-B
A, D, J
104Homo sapiensMutation(s): 0
Gene Names: ELOBTCEB2
UniProt & NIH Common Fund Data Resources
Find proteins for Q15370 (Homo sapiens)
Explore Q15370
Go to UniProtKB:  Q15370
PHAROS:  Q15370
GTEx:  ENSG00000103363
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ15370
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Elongin-C
B, E, H, K
98Homo sapiensMutation(s): 0
Gene Names: ELOCTCEB1
UniProt & NIH Common Fund Data Resources
Find proteins for Q15369 (Homo sapiens)
Explore Q15369
Go to UniProtKB:  Q15369
PHAROS:  Q15369
GTEx:  ENSG00000154582
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ15369
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

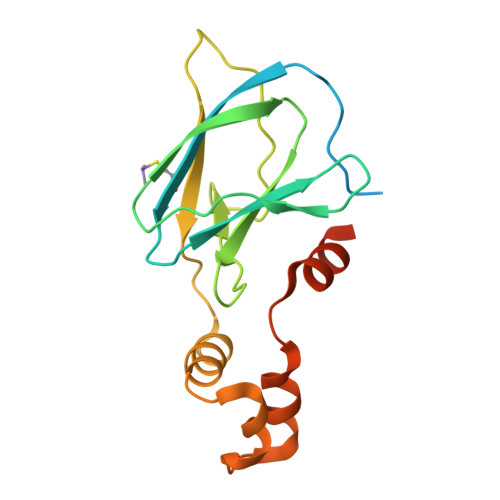

von Hippel-Lindau disease tumor suppressor
C, F, I, L
180Homo sapiensMutation(s): 0
Gene Names: VHL
UniProt & NIH Common Fund Data Resources
Find proteins for P40337 (Homo sapiens)
Explore P40337
Go to UniProtKB:  P40337
PHAROS:  P40337
GTEx:  ENSG00000134086
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP40337
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

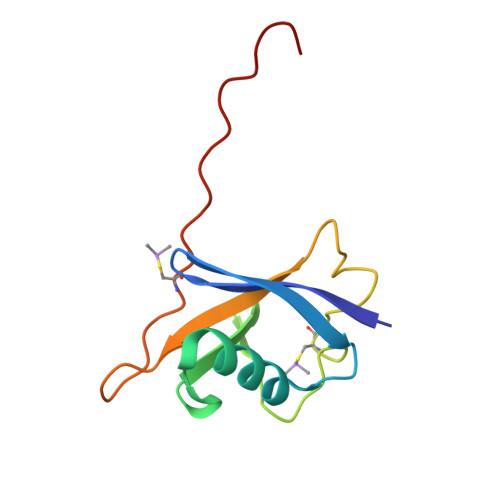

Elongin-B104Homo sapiensMutation(s): 0
Gene Names: ELOBTCEB2
UniProt & NIH Common Fund Data Resources
Find proteins for Q15370 (Homo sapiens)
Explore Q15370
Go to UniProtKB:  Q15370
PHAROS:  Q15370
GTEx:  ENSG00000103363
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ15370
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.61 Å
  • R-Value Free:  0.283 (Depositor), 0.288 (DCC)
  • R-Value Work:  0.225 (Depositor), 0.229 (DCC)
  • R-Value Observed: 0.228 (Depositor)
Space Group: P 41 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 93.386α = 90
b = 93.386β = 90
c = 362.706γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other privateUnited StatesAWD00000788

Revision History  (Full details and data files)

  • Version 1.0: 2025-07-09
    Type: Initial release
  • Version 1.1: 2025-09-03
    Changes: Database references
