6JN6 | pdb_00006jn6

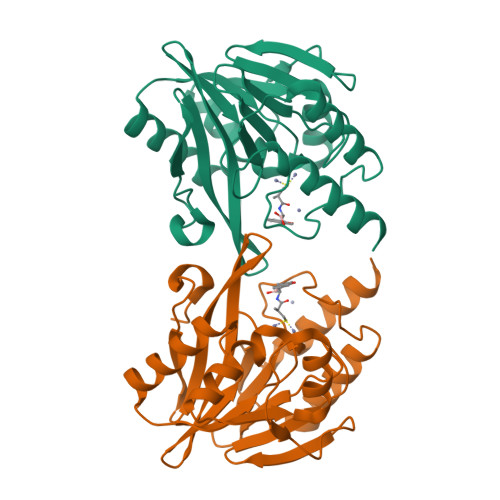

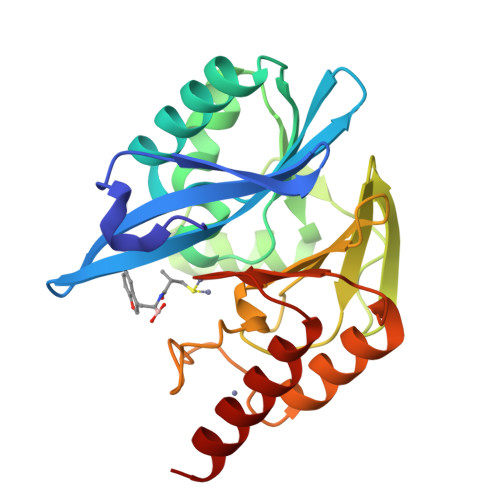

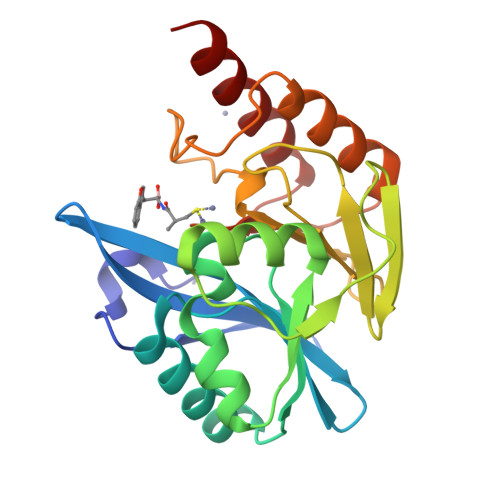

Metallo-Beta-Lactamase VIM-2 in complex with Dual MBL/SBL Inhibitor MS19


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.60 Å
  • R-Value Free:
    0.187 (Depositor), 0.190 (DCC)
  • R-Value Work:
    0.156 (Depositor), 0.170 (DCC)
  • R-Value Observed:
    0.157 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted BY0Click on this verticalbar to view details

This is version 1.2 of the entry. See complete history


Literature

Structure-Based Development of (1-(3'-Mercaptopropanamido)methyl)boronic Acid Derived Broad-Spectrum, Dual-Action Inhibitors of Metallo- and Serine-beta-lactamases.

Wang, Y.L.Liu, S.Yu, Z.J.Lei, Y.Huang, M.Y.Yan, Y.H.Ma, Q.Zheng, Y.Deng, H.Sun, Y.Wu, C.Yu, Y.Chen, Q.Wang, Z.Wu, Y.Li, G.B.

(2019) J Med Chem 62: 7160-7184

  • DOI: https://doi.org/10.1021/acs.jmedchem.9b00735
  • Primary Citation of Related Structures:
    6J8Q, 6J8R, 6JN3, 6JN4, 6JN5, 6JN6

  • PubMed Abstract:

    The emergence and spread of bacterial pathogens acquired metallo-β-lactamase (MBL) and serine-β-lactamase (SBL) medicated β-lactam resistance gives rise to an urgent need for the development of new dual-action MBL/SBL inhibitors. Application of a pharmacophore fusion strategy led to the identification of (2' S )-(1-(3'-mercapto-2'-methylpropanamido)methyl)boronic acid ( MS01 ) as a new dual-action inhibitor, which manifests broad-spectrum inhibition to representative MBL/SBL enzymes, including the widespread VIM-2 and KPC-2. Guided by the VIM-2: MS01 and KPC-2: MS01 complex structures, further structural optimization yielded new, more potent dual-action inhibitors. Selectivity studies indicated that the inhibitors had no apparent inhibition to human angiotensin-converting enzyme-2 and showed selectivity across serine hydrolyases in E. coli and human HEK293T cells labeled by the activity-based probe TAMRA-FP. Moreover, the inhibitors displayed potentiation of meropenem efficacy against MBL- or SBL-positive clinical isolates without apparent cytotoxicity. This work will aid efforts to develop new types of clinically useful dual-action inhibitors targeting MBL/SBL enzymes.


  • Organizational Affiliation
    • Key Laboratory of Drug-Targeting and Drug Delivery System of the Education Ministry, Sichuan Engineering Laboratory for Plant-Sourced Drug and Sichuan Research Center for Drug Precision Industrial Technology, West China School of Pharmacy , Sichuan University , Sichuan 610041 , China.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Beta-lactamase class B VIM-2
A, B
231Pseudomonas aeruginosaMutation(s): 0
Gene Names: blaVIM-2bla vim-2bla-VIM-2blasVIM-2blaVIM2blmVIM-2PAERUG_P32_London_17_VIM_2_10_11_06255
EC: 3.5.2.6
UniProt
Find proteins for Q9K2N0 (Pseudomonas aeruginosa)
Explore Q9K2N0
Go to UniProtKB:  Q9K2N0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9K2N0
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
BY0 (Subject of Investigation/LOI)
Query on BY0

Download Ideal Coordinates CCD File
F [auth A],
M [auth B]
[(1S)-2-(1-benzofuran-3-yl)-1-[[(2S)-2-methyl-3-sulfanyl-propanoyl]amino]ethyl]boronic acid
C14 H18 B N O4 S
RHFFZKGRUWBIGC-NOZJJQNGSA-N
ZN
Query on ZN

Download Ideal Coordinates CCD File
C [auth A]
D [auth A]
E [auth A]
J [auth B]
K [auth B]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
FMT
Query on FMT

Download Ideal Coordinates CCD File
G [auth A]
H [auth A]
I [auth A]
N [auth B]
O [auth B]
FORMIC ACID
C H2 O2
BDAGIHXWWSANSR-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.60 Å
  • R-Value Free:  0.187 (Depositor), 0.190 (DCC)
  • R-Value Work:  0.156 (Depositor), 0.170 (DCC)
  • R-Value Observed: 0.157 (Depositor)
Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 102.51α = 90
b = 79.236β = 130.61
c = 67.806γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
SCALEPACKdata scaling
PHASERphasing
PDB_EXTRACTdata extraction
HKL-3000data reduction

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted BY0Click on this verticalbar to view details

Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of ChinaChina81874291
National Natural Science Foundation of ChinaChina81502989

Revision History  (Full details and data files)

  • Version 1.0: 2019-07-17
    Type: Initial release
  • Version 1.1: 2019-08-21
    Changes: Data collection, Database references
  • Version 1.2: 2023-11-22
    Changes: Data collection, Database references, Derived calculations, Refinement description
