8VMK | pdb_00008vmk

A crystal structure of heme-dependent tyrosine hydroxylase complexed with a substrate analog, 3-(4-hydroxyphenyl)propionic acid

PDB DOI: https://doi.org/10.2210/pdb8VMK/pdb

Classification: OXIDOREDUCTASE/INHIBITOR
Organism(s): Streptomyces sclerotialus
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2024-01-13 Released: 2025-08-27
Deposition Author(s): Wang, Y., Traore, E., Liu, A.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.56 Å
R-Value Free:
0.213 (Depositor), 0.213 (DCC)
R-Value Work:
0.187 (Depositor), 0.187 (DCC)
R-Value Observed:
0.188 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

A crystal structure of heme-dependent tyrosine hydroxylase complexed with a substrate analog, 3-(4-hydroxyphenyl)propionic acid

Traore, E., Wang, Y., Liu, A.

To be published.

Macromolecule Content

Total Structure Weight: 71.06 kDa
Atom Count: 5,417
Modeled Residue Count: 604
Deposited Residue Count: 632
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

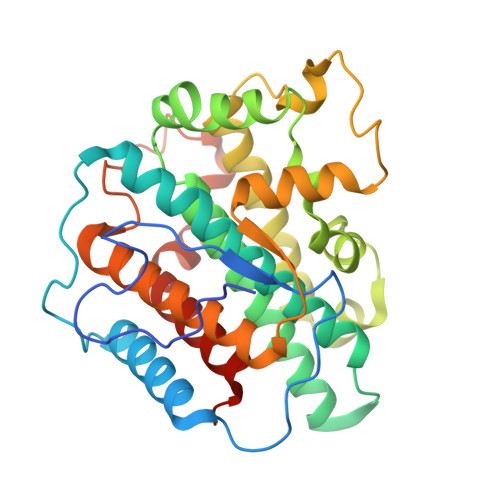

Heme-dependent L-tyrosine hydroxylase	A, B	316	Streptomyces sclerotialus	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
HEM (Subject of Investigation/LOI) Query on HEM Download Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain G [auth B] MOL2 format, chain D [auth A] MOL2 format, chain G [auth B] mmCIF format, chain D [auth A] mmCIF format, chain G [auth B]	D [auth A], G [auth B]	PROTOPORPHYRIN IX CONTAINING FE C₃₄ H₃₂ Fe N₄ O₄ KABFMIBPWCXCRK-RGGAHWMASA-L		Interactions Focus chain D [auth A] Focus chain G [auth B] Interactions & Density Focus chain D [auth A] Focus chain G [auth B]
HPP (Subject of Investigation/LOI) Query on HPP Download Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain F [auth B] MOL2 format, chain C [auth A] MOL2 format, chain F [auth B] mmCIF format, chain C [auth A] mmCIF format, chain F [auth B]	C [auth A], F [auth B]	HYDROXYPHENYL PROPIONIC ACID C₉ H₁₀ O₃ NMHMNPHRMNGLLB-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain F [auth B] Interactions & Density Focus chain C [auth A] Focus chain F [auth B]
TRS Query on TRS Download Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain H [auth B] MOL2 format, chain E [auth A] MOL2 format, chain H [auth B] mmCIF format, chain E [auth A] mmCIF format, chain H [auth B]	E [auth A], H [auth B]	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL C₄ H₁₂ N O₃ LENZDBCJOHFCAS-UHFFFAOYSA-O		Interactions Focus chain E [auth A] Focus chain H [auth B] Interactions & Density Focus chain E [auth A] Focus chain H [auth B]
