8YDU | pdb_00008ydu

Crystal structure of the receptor binding domain of SARS-CoV-2 Omicron BA.2 variant spike protein in complex with CeSPIACE


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free:
    0.252 (Depositor), 0.253 (DCC)
  • R-Value Work:
    0.220 (Depositor), 0.220 (DCC)
  • R-Value Observed:
    0.222 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Structure-guided engineering of a mutation-tolerant inhibitor peptide against variable SARS-CoV-2 spikes.

Nakamura, S.Tanimura, Y.Nomura, R.Suzuki, H.Nishikawa, K.Kamegawa, A.Numoto, N.Tanaka, A.Kawabata, S.Sakaguchi, S.Emi, A.Suzuki, Y.Fujiyoshi, Y.

(2025) Proc Natl Acad Sci U S A 122: e2413465122-e2413465122

  • DOI: https://doi.org/10.1073/pnas.2413465122
  • Primary Citation of Related Structures:
    8YDP, 8YDQ, 8YDR, 8YDS, 8YDT, 8YDU, 8YDV, 8YDW, 8YDX, 8YDY, 8YDZ

  • PubMed Abstract:

    Pathogen mutations present an inevitable and challenging problem for therapeutics and the development of mutation-tolerant anti-infective drugs to strengthen global health and combat evolving pathogens is urgently needed. While spike proteins on viral surfaces are attractive targets for preventing viral entry, they mutate frequently, making it difficult to develop effective therapeutics. Here, we used a structure-guided strategy to engineer an inhibitor peptide against the SARS-CoV-2 spike, called CeSPIACE, with mutation-tolerant and potent binding ability against all variants to enhance affinity for the invariant architecture of the receptor-binding domain (RBD). High-resolution structures of the peptide complexed with mutant RBDs revealed a mechanism of mutation-tolerant inhibition. CeSPIACE bound major mutant RBDs with picomolar affinity and inhibited infection by SARS-CoV-2 variants in VeroE6/TMPRSS2 cells (IC 50 4 pM to 13 nM) and demonstrated potent in vivo efficacy by inhalation administration in hamsters. Mutagenesis analyses to address mutation risks confirmed tolerance against existing and/or potential future mutations of the RBD. Our strategy of engineering mutation-tolerant inhibitors may be applicable to other infectious diseases.


  • Organizational Affiliation
    • Cellular and Structural Physiology Laboratory, Advanced Research Initiative, Institute of Integrated Research, Institute of Science Tokyo, Bunkyo-ku, Tokyo 113-8510, Japan.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

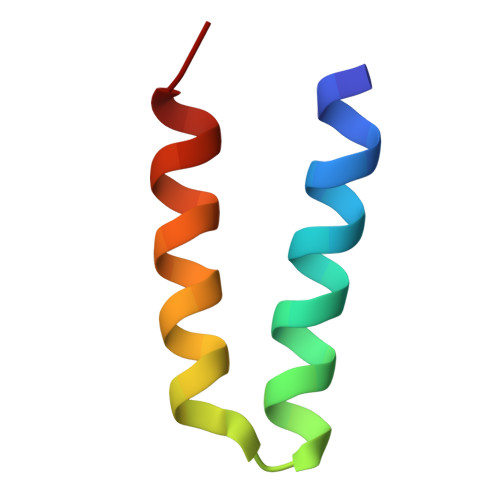

SARS-CoV-2 inhibiting peptide CeSPIACE39synthetic constructMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

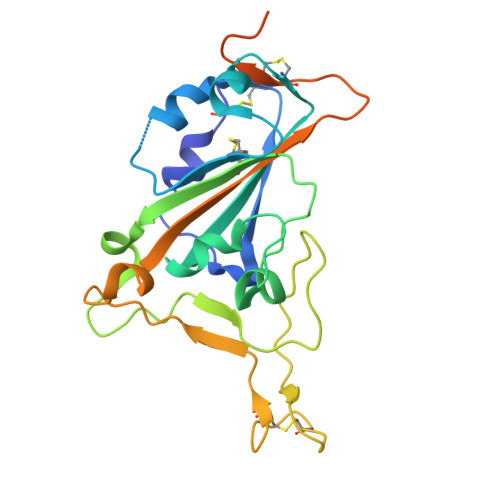

Spike protein S1230Severe acute respiratory syndrome coronavirus 2Mutation(s): 15
Gene Names: S2
UniProt
Find proteins for P0DTC2 (Severe acute respiratory syndrome coronavirus 2)
Explore P0DTC2
Go to UniProtKB:  P0DTC2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0DTC2
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
GOL
Query on GOL

Download Ideal Coordinates CCD File
C [auth B]GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free:  0.252 (Depositor), 0.253 (DCC)
  • R-Value Work:  0.220 (Depositor), 0.220 (DCC)
  • R-Value Observed: 0.222 (Depositor)
Space Group: P 31 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 74.26α = 90
b = 74.26β = 90
c = 99.76γ = 120
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
XDSdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Japan Agency for Medical Research and Development (AMED)JapanJP21fk0108462, JP21fk0108585, JP21ae0121028, JP18ae0101046
Japan Society for the Promotion of Science (JSPS)Japan20H00451

Revision History  (Full details and data files)

  • Version 1.0: 2025-01-15
    Type: Initial release
  • Version 1.1: 2025-07-30
    Changes: Database references
