9DWO | pdb_00009dwo

Crystal Structure of C4-Dicarboxylate-Binding Protein (PA0884) of Tripartite ATP-independent Periplasmic Transporter Family from Pseudomonas aeruginosa PAO1 in Complex with L-Malate

PDB DOI: https://doi.org/10.2210/pdb9DWO/pdb

Classification: TRANSPORT PROTEIN
Organism(s): Pseudomonas aeruginosa PAO1
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2024-10-09 Released: 2025-07-09
Deposition Author(s): Minasov, G., Shukla, S., Shuvalova, L., Satchell, K.J.F., Center for Structural Biology of Infectious Diseases (CSBID)
Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.50 Å
R-Value Free:
0.212 (Depositor), 0.213 (DCC)
R-Value Work:
0.175 (Depositor), 0.176 (DCC)
R-Value Observed:
0.176 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Crystal Structure of C4-Dicarboxylate-Binding Protein (PA0884) of Tripartite ATP-independent Periplasmic Transporter Family from Pseudomonas aeruginosa PAO1 in Complex with L-Malate

Minasov, G., Shukla, S., Shuvalova, L., Satchell, K.J.F., Center for Structural Biology of Infectious Diseases (CSBID)

To be published.

Macromolecule Content

Total Structure Weight: 35.34 kDa
Atom Count: 2,812
Modeled Residue Count: 288
Deposited Residue Count: 311
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

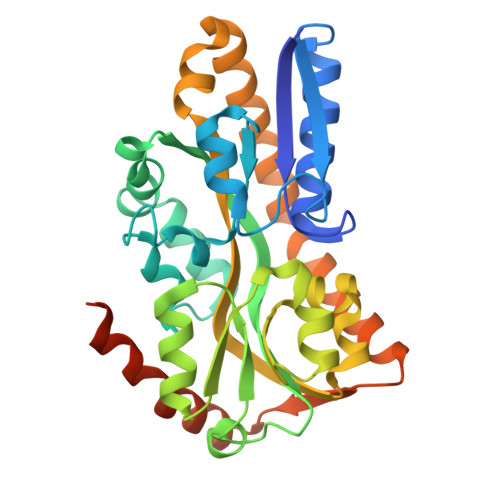

C4-dicarboxylate-binding protein	A	311	Pseudomonas aeruginosa PAO1	Mutation(s): 0 Gene Names: PA0884
UniProt
Find proteins for Q9I561 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9I561 Go to UniProtKB: Q9I561
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9I561
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
LMR (Subject of Investigation/LOI) Query on LMR Download Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	(2S)-2-hydroxybutanedioic acid C₄ H₆ O₅ BJEPYKJPYRNKOW-REOHCLBHSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.50 Å
R-Value Free: 0.212 (Depositor), 0.213 (DCC)
R-Value Work: 0.175 (Depositor), 0.176 (DCC)
R-Value Observed: 0.176 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 46.678	α = 90
b = 66.953	β = 90
c = 87.688	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
HKL-3000	data reduction
HKL-3000	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History & Funding Information

Deposition Data

Released Date: 2025-07-09

Deposition Author(s):

Satchell, K.J.F.

Center for Structural Biology of Infectious Diseases (CSBID)

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	HHSN272201700060C

Revision History (Full details and data files)

Version 1.0: 2025-07-09
Type: Initial release
