9F0T | pdb_00009f0t

Structure of KPC-2 complexed with benzoxaborole AK-110

PDB DOI: https://doi.org/10.2210/pdb9F0T/pdb

Classification: ANTIMICROBIAL PROTEIN
Organism(s): Klebsiella pneumoniae
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2024-04-17 Released: 2025-07-09
Deposition Author(s): Tooke, C.L., Hinchliffe, P., Spencer, J.
Funding Organization(s): Medical Research Council (MRC, United Kingdom)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 0.98 Å
R-Value Free:
0.162 (Depositor), 0.173 (DCC)
R-Value Work:
0.142 (Depositor), 0.157 (DCC)
R-Value Observed:
0.143 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Structure of KPC-2 complexed with benzoxaborole AK-110

Tooke, C.L., Hinchliffe, P., Spencer, J.

To be published.

Macromolecule Content

Total Structure Weight: 31.89 kDa
Atom Count: 2,737
Modeled Residue Count: 271
Deposited Residue Count: 290
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

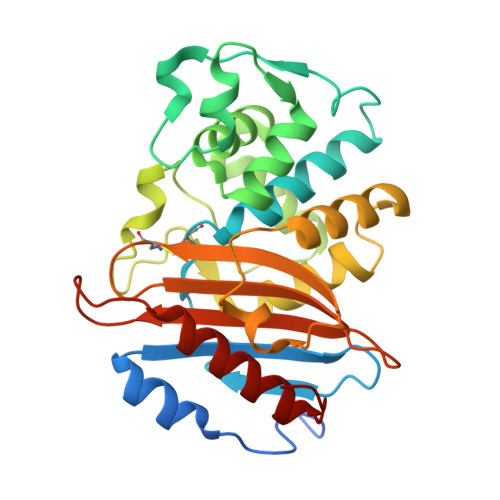

Carbapenem-hydrolyzing beta-lactamase KPC	A	290	Klebsiella pneumoniae	Mutation(s): 0 Gene Names: bla, kpc, kpc1 EC: 3.5.2.6
UniProt
Find proteins for Q9F663 (Klebsiella pneumoniae) Explore Q9F663 Go to UniProtKB: Q9F663
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9F663
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1H8S (Subject of Investigation/LOI) Query on A1H8S Download Ideal Coordinates CCD File SDF format, chain E [auth A] MOL2 format, chain E [auth A] mmCIF format, chain E [auth A]	E [auth A]	~{N}-[[(3~{S})-1-oxidanyl-3~{H}-2,1$l^{4}-benzoxaborol-3-yl]methyl]pyrrolidine-1-sulfonamide C₁₂ H₁₇ B N₂ O₄ S DWQJFZHIQFZSLW-GFCCVEGCSA-N		Interactions Focus chain E [auth A] Interactions & Density Focus chain E [auth A]
SO4 Query on SO4 Download Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth A] SDF format, chain H [auth A] SDF format, chain I [auth A] SDF format, chain J [auth A] SDF format, chain K [auth A] MOL2 format, chain C [auth A] MOL2 format, chain D [auth A] MOL2 format, chain H [auth A] MOL2 format, chain I [auth A] MOL2 format, chain J [auth A] MOL2 format, chain K [auth A] mmCIF format, chain C [auth A] mmCIF format, chain D [auth A] mmCIF format, chain H [auth A] mmCIF format, chain I [auth A] mmCIF format, chain J [auth A] mmCIF format, chain K [auth A]	C [auth A] D [auth A] H [auth A] I [auth A] J [auth A] C [auth A], D [auth A], H [auth A], I [auth A], J [auth A], K [auth A]	SULFATE ION O₄ S QAOWNCQODCNURD-UHFFFAOYSA-L		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Interactions & Density Focus chain C [auth A] Focus chain D [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A]
GOL Query on GOL Download Ideal Coordinates CCD File SDF format, chain B [auth A] SDF format, chain F [auth A] MOL2 format, chain B [auth A] MOL2 format, chain F [auth A] mmCIF format, chain B [auth A] mmCIF format, chain F [auth A]	B [auth A], F [auth A]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain B [auth A] Focus chain F [auth A] Interactions & Density Focus chain B [auth A] Focus chain F [auth A]
NA Query on NA Download Ideal Coordinates CCD File SDF format, chain G [auth A] MOL2 format, chain G [auth A] mmCIF format, chain G [auth A]	G [auth A]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Interactions & Density Focus chain G [auth A]
