9F7P | pdb_00009f7p

SARS-CoV-2 papain-like protease (PLpro) C112S mutant

PDB DOI: https://doi.org/10.2210/pdb9F7P/pdb

Classification: VIRAL PROTEIN
Organism(s): Severe acute respiratory syndrome coronavirus 2
Expression System: Escherichia coli BL21(DE3)
Mutation(s): Yes

Deposited: 2024-05-04 Released: 2025-05-14
Deposition Author(s): Camara-Artigas, A.
Funding Organization(s): Other government

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.70 Å
R-Value Free:
0.179 (Depositor), 0.179 (DCC)
R-Value Work:
0.165 (Depositor), 0.164 (DCC)
R-Value Observed:
0.166 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

SARS-CoV-2 papain-like protease (PLpro) C112S mutant

Camara-Artigas, A.

To be published.

Macromolecule Content

Total Structure Weight: 37.41 kDa
Atom Count: 2,851
Modeled Residue Count: 315
Deposited Residue Count: 325
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

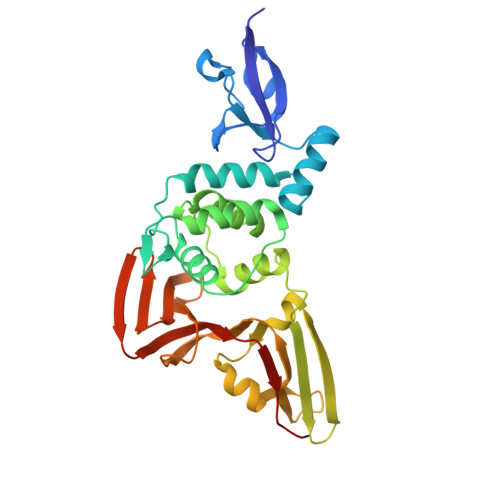

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Replicase polyprotein 1ab	A	325	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 1 Gene Names: rep, 1a-1b EC: 3.4.19.12 (PDB Primary Data), 3.4.22 (PDB Primary Data)
UniProt
Find proteins for P0DTD1 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTD1 Go to UniProtKB: P0DTD1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P0DTD1
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 5 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
PEG Query on PEG Download Ideal Coordinates CCD File SDF format, chain D [auth A] MOL2 format, chain D [auth A] mmCIF format, chain D [auth A]	D [auth A]	DI(HYDROXYETHYL)ETHER C₄ H₁₀ O₃ MTHSVFCYNBDYFN-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Interactions & Density Focus chain D [auth A]
MLI Query on MLI Download Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain C [auth A] MOL2 format, chain E [auth A] MOL2 format, chain C [auth A] mmCIF format, chain E [auth A] mmCIF format, chain C [auth A]	C [auth A], E [auth A]	MALONATE ION C₃ H₂ O₄ OFOBLEOULBTSOW-UHFFFAOYSA-L		Interactions Focus chain C [auth A] Focus chain E [auth A] Interactions & Density Focus chain C [auth A] Focus chain E [auth A]
ZN Query on ZN Download Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]
CL Query on CL Download Ideal Coordinates CCD File SDF format, chain H [auth A] SDF format, chain I [auth A] MOL2 format, chain H [auth A] MOL2 format, chain I [auth A] mmCIF format, chain H [auth A] mmCIF format, chain I [auth A]	H [auth A], I [auth A]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain H [auth A] Focus chain I [auth A] Interactions & Density Focus chain H [auth A] Focus chain I [auth A]
NA Query on NA Download Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain G [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A]	F [auth A], G [auth A]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Focus chain G [auth A] Interactions & Density Focus chain F [auth A] Focus chain G [auth A]
