9FWM | pdb_00009fwm

Crystal Structure of SARS-CoV-2 NSP10-NSP14 (ExoN) in complex with VT00180

PDB DOI: https://doi.org/10.2210/pdb9FWM/pdb

Classification: VIRAL PROTEIN
Organism(s): Severe acute respiratory syndrome coronavirus 2
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2024-06-30 Released: 2025-07-09
Deposition Author(s): Krojer, T., Kozielski, F., Sele, C., Nyblom, M., Fisher, S.Z., Knecht, W.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.57 Å
R-Value Free:
0.213 (Depositor), 0.207 (DCC)
R-Value Work:
0.182 (Depositor), 0.177 (DCC)
R-Value Observed:
0.184 (Depositor)

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Crystal Structure of SARS-CoV-2 NSP10-NSP14 (ExoN) in complex with VT00180

Krojer, T., Kozielski, F., Sele, C., Nyblom, M., Fisher, S.Z., Knecht, W.

To be published.

Macromolecule Content

Total Structure Weight: 47.19 kDa
Atom Count: 3,635
Modeled Residue Count: 417
Deposited Residue Count: 421
Unique protein chains: 2

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

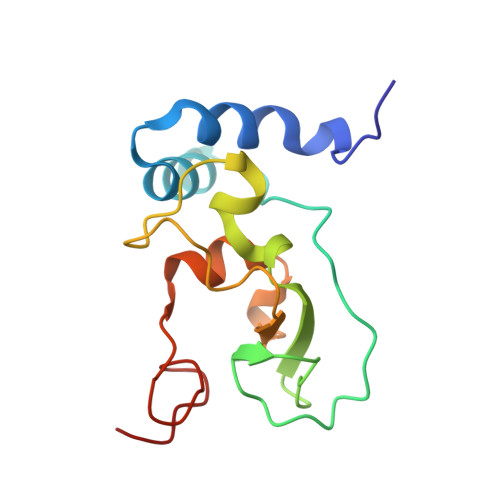

Non-structural protein 10	A	131	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0
UniProt
Find proteins for P0DTC1 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTC1 Go to UniProtKB: P0DTC1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P0DTC1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

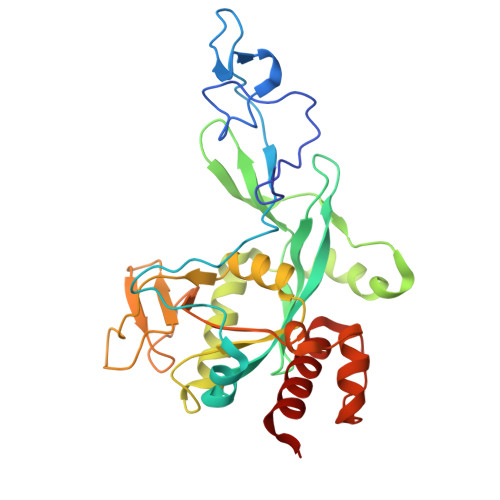

Guanine-N7 methyltransferase nsp14	B	290	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0 Gene Names: rep, 1a-1b EC: 2.1.1.56 (PDB Primary Data), 3.1.13 (PDB Primary Data)
UniProt
Find proteins for P0DTD1 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTD1 Go to UniProtKB: P0DTD1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P0DTD1
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1IGR (Subject of Investigation/LOI) Query on A1IGR Download Ideal Coordinates CCD File SDF format, chain D [auth A] MOL2 format, chain D [auth A] mmCIF format, chain D [auth A]	D [auth A]	1H-indole-3-carboxamide C₉ H₈ N₂ O LSGKMZLPZFPAIN-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Interactions & Density Focus chain D [auth A]
DMS Query on DMS Download Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain G [auth B] MOL2 format, chain C [auth A] MOL2 format, chain G [auth B] mmCIF format, chain C [auth A] mmCIF format, chain G [auth B]	C [auth A], G [auth B]	DIMETHYL SULFOXIDE C₂ H₆ O S IAZDPXIOMUYVGZ-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain G [auth B] Interactions & Density Focus chain C [auth A] Focus chain G [auth B]
ZN Query on ZN Download Ideal Coordinates CCD File SDF format, chain H [auth B] SDF format, chain I [auth B] SDF format, chain E [auth A] SDF format, chain F [auth A] MOL2 format, chain H [auth B] MOL2 format, chain I [auth B] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] mmCIF format, chain H [auth B] mmCIF format, chain I [auth B] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A]	E [auth A], F [auth A], H [auth B], I [auth B]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Focus chain F [auth A] Focus chain H [auth B] Focus chain I [auth B] Interactions & Density Focus chain E [auth A] Focus chain F [auth A] Focus chain H [auth B] Focus chain I [auth B]
MG Query on MG Download Ideal Coordinates CCD File SDF format, chain J [auth B] SDF format, chain K [auth B] MOL2 format, chain J [auth B] MOL2 format, chain K [auth B] mmCIF format, chain J [auth B] mmCIF format, chain K [auth B]	J [auth B], K [auth B]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain J [auth B] Focus chain K [auth B] Interactions & Density Focus chain J [auth B] Focus chain K [auth B]
