9GQQ | pdb_00009gqq

influenza neuraminidase N1/19 hybrid

PDB DOI: https://doi.org/10.2210/pdb9GQQ/pdb

Classification: VIRAL PROTEIN
Organism(s): unidentified influenza virus
Expression System: Cricetulus griseus
Mutation(s): No

Deposited: 2024-09-09 Released: 2025-06-11
Deposition Author(s): Bowden, T.A., Paesen, G.C., Rijal, P.
Funding Organization(s): Medical Research Council (MRC, United Kingdom)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.78 Å
R-Value Free:
0.215 (Depositor), 0.214 (DCC)
R-Value Work:
0.189 (Depositor), 0.189 (DCC)
R-Value Observed:
0.190 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Structure-Guided Loop Grafting Improves Expression and Stability of Influenza Neuraminidase for Vaccine Development

Rijal, P., Wei, L., Paesen, G.C., Stuart, D.I., Howarth, M.R., Huang, K.Y.A., Bowden, T.A., Townsend, A.R.

(2025) Elife

DOI: https://doi.org/10.7554/elife.105317.2

Macromolecule Content

Total Structure Weight: 113.29 kDa
Atom Count: 6,754
Modeled Residue Count: 802
Deposited Residue Count: 1,022
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

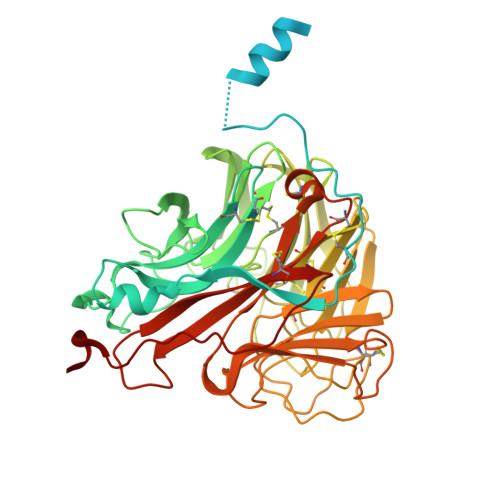

Neuraminidase	A, B	511	unidentified influenza virus	Mutation(s): 0 Gene Names: NA EC: 3.2.1.18
UniProt
Find proteins for A0A509GK44 (Influenza A virus) Explore A0A509GK44 Go to UniProtKB: A0A509GK44
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A509GK44
Glycosylation
Glycosylation Sites: 4	Glycosylation Focus chain A Focus chain B
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Help

Entity ID: 2
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	C	2		N-Glycosylation	Interactions Focus chain C Interactions & Density Focus chain C
Glycosylation Resources
GlyTouCan: G42666HT GlyCosmos: G42666HT GlyGen: G42666HT

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG (Subject of Investigation/LOI) Query on NAG Download Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain K [auth B] SDF format, chain L [auth B] SDF format, chain M [auth B] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain K [auth B] MOL2 format, chain L [auth B] MOL2 format, chain M [auth B] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain K [auth B] mmCIF format, chain L [auth B] mmCIF format, chain M [auth B]	F [auth A] G [auth A] H [auth A] K [auth B] L [auth B] F [auth A], G [auth A], H [auth A], K [auth B], L [auth B], M [auth B]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain K [auth B] Focus chain L [auth B] Focus chain M [auth B] Interactions & Density Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain K [auth B] Focus chain L [auth B] Focus chain M [auth B]
CA (Subject of Investigation/LOI) Query on CA Download Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain E [auth A] SDF format, chain I [auth B] SDF format, chain J [auth B] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain I [auth B] MOL2 format, chain J [auth B] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A] mmCIF format, chain I [auth B] mmCIF format, chain J [auth B]	D [auth A], E [auth A], I [auth B], J [auth B]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Focus chain E [auth A] Focus chain I [auth B] Focus chain J [auth B] Interactions & Density Focus chain D [auth A] Focus chain E [auth A] Focus chain I [auth B] Focus chain J [auth B]
