9HRY | pdb_00009hry

The MK-RSL - pctx complex, P41212 form


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.50 Å
  • R-Value Free:
    0.199 (Depositor), 0.198 (DCC)
  • R-Value Work:
    0.176 (Depositor), 0.175 (DCC)
  • R-Value Observed:
    0.177 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history


Literature

Protein Recognition and Assembly by a Phosphocavitand.

Wren, C.P.Flood, R.J.Mockler, N.M.Savko, M.Malinska, M.Shi, Q.Crowley, P.B.

(2025) J Am Chem Soc 147: 28107-28116

  • DOI: https://doi.org/10.1021/jacs.5c08121
  • Primary Citation of Related Structures:
    9HRU, 9HRV, 9HRW, 9HRX, 9HRY, 9HRZ

  • PubMed Abstract:

    Controlled protein assembly is an enabling technology, in particular, for biomaterials fabrication. Here, we report protein recognition and assembly by a phosphate-containing macrocycle ( pctx ). We show that the C 3 -symmetric phosphocavitand is a versatile receptor for N-terminal residues or arginine but not lysine. Using atomic resolution X-ray diffraction data, we reveal the precise details of N-terminal complexation in the β-propeller protein Ralstonia solanacearum lectin (RSL). In some cocrystal structures, a tetrahedral cluster of the phosphocavitand occupies one end of the β-propeller fold, providing a node for protein assembly. The macrocycle cluster is compatible with different types of precipitants, a broad pH range, and zinc complexation. We demonstrate system control with an arginine-enriched RSL that alters the overall assembly due to selective arginine complexation by pctx . A lysozyme- pctx cocrystal structure also demonstrates arginine complexation by the macrocycle. An alternative macrocycle cluster occurs with an engineered RSL bearing an extended N-terminus. In this structure, involving zinc ligation at the N-terminus, the macrocycle forms trimeric clusters and four such clusters form cage-like substructures within the tetrahedral protein framework. Thus, N-terminal complexation in combination with phosphocavitand self-assembly provides new routes to protein crystal engineering.


  • Organizational Affiliation
    • School of Biological and Chemical Sciences, University of Galway, Galway H91 TK33, Ireland.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

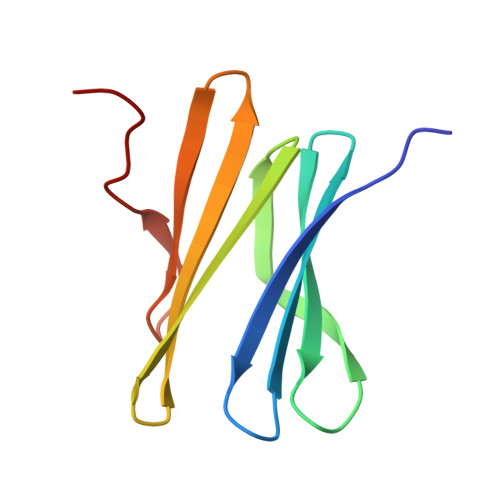

Fucose-binding lectin protein
A, B, C, D, E
A, B, C, D, E, F
91Ralstonia solanacearumMutation(s): 1
Gene Names: E7Z57_08365HF909_06975LBW55_09125RUN39_v1_50103
UniProt
Find proteins for A0A0S4TLR1 (Ralstonia solanacearum)
Explore A0A0S4TLR1
Go to UniProtKB:  A0A0S4TLR1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0S4TLR1
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1IXG (Subject of Investigation/LOI)
Query on A1IXG

Download Ideal Coordinates CCD File
CA [auth F]
I [auth A]
M [auth B]
Q [auth C]
U [auth D]
CA [auth F],
I [auth A],
M [auth B],
Q [auth C],
U [auth D],
Y [auth E]
phosphated-cyclotrixylohydroquinoylene
C27 H27 O12 P3
NGGZXQPIFFAJMJ-UHFFFAOYSA-N
BDF
Query on BDF

Download Ideal Coordinates CCD File
AA [auth F]
BA [auth F]
G [auth A]
H [auth A]
K [auth B]
AA [auth F],
BA [auth F],
G [auth A],
H [auth A],
K [auth B],
L [auth B],
O [auth C],
P [auth C],
S [auth D],
T [auth D],
W [auth E],
X [auth E]
beta-D-fructopyranose
C6 H12 O6
LKDRXBCSQODPBY-ARQDHWQXSA-N
ZN
Query on ZN

Download Ideal Coordinates CCD File
DA [auth F]
J [auth A]
N [auth B]
R [auth C]
V [auth D]
DA [auth F],
J [auth A],
N [auth B],
R [auth C],
V [auth D],
Z [auth E]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.50 Å
  • R-Value Free:  0.199 (Depositor), 0.198 (DCC)
  • R-Value Work:  0.176 (Depositor), 0.175 (DCC)
  • R-Value Observed: 0.177 (Depositor)
Space Group: P 41 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 112.158α = 90
b = 112.158β = 90
c = 99.312γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
Aimlessdata scaling
PHASERphasing
autoPROCdata processing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Science Foundation IrelandIreland12/RC/2275_P2

Revision History  (Full details and data files)

  • Version 1.0: 2025-08-20
    Type: Initial release
