9J1N | pdb_00009j1n

Mouse Spi-B Ets domain in complex with DNA containing AGAA sequence


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.24 Å
  • R-Value Free:
    0.244 (Depositor), 0.246 (DCC)
  • R-Value Work:
    0.215 (Depositor), 0.215 (DCC)
  • R-Value Observed:
    0.216 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history


Literature

Structural analysis of Spi-B DNA-binding Ets domain recognizing 5'-AGAA-3' and 5'-GGAA-3' sequences.

Nonaka, Y.Hoshino, K.Nakamura, T.Kamitori, S.

(2025) Biochem Biophys Res Commun 749: 151354-151354

  • DOI: https://doi.org/10.1016/j.bbrc.2025.151354
  • Primary Citation of Related Structures:
    9J1N, 9J1O

  • PubMed Abstract:

    Plasmacytoid dendritic cells produce large amounts of type-I interferon (IFN-I) upon sensing nucleic acid components of pathogens by Toll-like receptors (TLR7 and TLR9). The transcription factor Spi-B has the DNA-binding Ets domain, and transactivates the Ifna4 promoter co-operatively with IFN regulatory factor-7 (IRF-7) for TLR7/TLR9-induced IFN-I production. Spi-B associates with IRF-7, and activates transcription by binding to the 5'-AGAA-3' sequence, being different from 5'-GGAA-3', known as the Ets domain recognition sequence. To understand the molecular mechanism for the co-operative transactivation of the Ifna4 promoter by Spi-B and IRF-7, we performed X-ray structural determination of the Spi-B Ets domain in complex with target DNAs, including 5'-AGAA-3' and 5'-GGAA-3' sequences. Furthermore, we conducted a modeling study of the complex of the Spi-B and IRF-7 with Ifna4 promoter DNA. X-ray structures showed that the binding of the Spi-B Ets domain induces a kink in DNA at the recognition sequence, and a more kinked DNA structure was observed in 5'-AGAA-3' than 5'-GGAA-3'. A modeling study showed that the Spi-B-induced kinked DNA structure in 5'-AGAA-3' is favorable for Spi-B and IRF-7 to approach each other for association on DNA.


  • Organizational Affiliation

    International Institute of Rare Sugar Research and Education, Kagawa University, Takamatsu, Kagawa, 760-8521, Japan; Department of Pharmacology, Faculty of Medicine, Kagawa University, 1750-1 Ikenobe, Miki-cho, Kita-gun, Kagawa, 761-0793, Japan.


Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

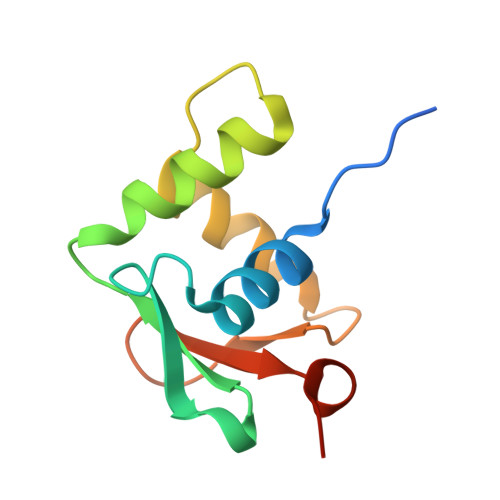

Transcription factor Spi-B106Mus musculusMutation(s): 0
Gene Names: Spib
UniProt
Find proteins for O35906 (Mus musculus)
Explore O35906
Go to UniProtKB:  O35906
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO35906
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 1
MoleculeChains LengthOrganismImage

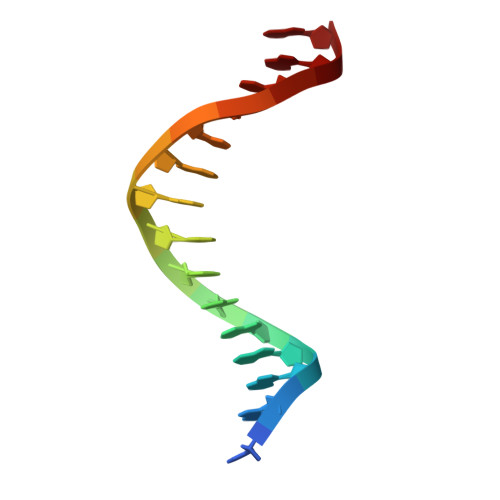

DNA (5'-D(*(3D1)P*TP*GP*AP*AP*AP*AP*GP*AP*GP*AP*AP*TP*TP*GP*G)-3')15Mus musculus
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 2
MoleculeChains LengthOrganismImage

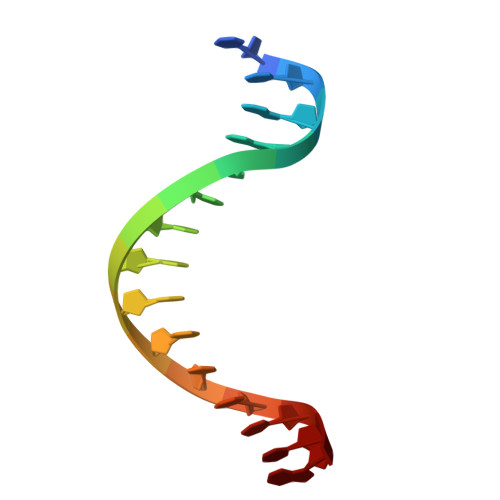

DNA (5'-D(*(THM)P*CP*CP*AP*AP*TP*TP*CP*TP*CP*TP*TP*TP*TP*CP*A)-3')15Mus musculus
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
3D1
Query on 3D1

Download Ideal Coordinates CCD File
D [auth A](2R,3S,5R)-5-(6-amino-9H-purin-9-yl)-tetrahydro-2-(hydroxymethyl)furan-3-ol
C10 H13 N5 O3
OLXZPDWKRNYJJZ-RRKCRQDMSA-N
THM
Query on THM

Download Ideal Coordinates CCD File
E [auth B]THYMIDINE
C10 H14 N2 O5
IQFYYKKMVGJFEH-XLPZGREQSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.24 Å
  • R-Value Free:  0.244 (Depositor), 0.246 (DCC)
  • R-Value Work:  0.215 (Depositor), 0.215 (DCC)
  • R-Value Observed: 0.216 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 33.29α = 90
b = 53.81β = 90
c = 100.25γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
XSCALEdata scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2025-06-18
    Type: Initial release
