9LKW | pdb_00009lkw

Crystal structure of the 2'-dG-III riboswitch bound to Guanine


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.28 Å
  • R-Value Free:
    0.226 (Depositor), 0.225 (DCC)
  • R-Value Work:
    0.212 (Depositor), 0.212 (DCC)
  • R-Value Observed:
    0.213 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history


Literature

Structure-based insights into the ligand specificity tuning of 2'-dG-III riboswitch.

Shen, X.Li, H.Xu, X.Song, Q.Tai, X.He, M.Ren, A.

(2025) Nucleic Acids Res 53

  • DOI: https://doi.org/10.1093/nar/gkaf773
  • Primary Citation of Related Structures:
    9LKU, 9LKV, 9LKW, 9UW0

  • PubMed Abstract:

    Riboswitches are conserved non-coding RNA domains predominantly located at the 5'-end of the bacterial mRNAs, serving as gene expression regulators. Recently, a third class of 2'-deoxyguanosine riboswitch (2'-dG-III) has been identified from guanine riboswitch family, exhibiting comparable binding affinity toward 2'-dG, guanine, and guanosine. To elucidate the unique ligand recognition mechanism of this riboswitch, we solved its crystal structures in complex with different purine derivatives, including 2'-dG, guanine, and guanosine. The tertiary structure reveals a typical tuning-fork-like architecture, with three stems converging at a central three-way junction. The bound ligand, 2'-dG, is anchored within the junctional core through specific molecular interactions involving certain critical nucleotides. Through systemic comparative analysis of the binding pocket across different ligand-bound states, as well as related guanine family riboswitches, including 2'-dG-I, 2'-dG-II, and Guanine-I riboswitches, we identified subtle yet significant structural variations that modulate binding affinity and specificity. Leveraging these findings, we further engineered RNA biosensors by fusing the 2'-dG-III riboswitch with Pepper fluorogenic RNA aptamer, which exhibits a robust, positive correlation between fluorescence intensity and 2'-dG levels in vitro. Together, this work not only advances our understanding of the ligand recognition mechanisms underlying the 2'-dG-III riboswitch and related guanine riboswitch family but also lays the groundwork for fine-tuning riboswitch specificity, paving the way for the development of highly specific RNA-based biosensors.


  • Organizational Affiliation
    • Department of Cardiology of The Second Affiliated Hospital and Life Sciences Institute and School of Medicine, Zhejiang University, Hangzhou 310058, China.

Macromolecules
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains LengthOrganismImage

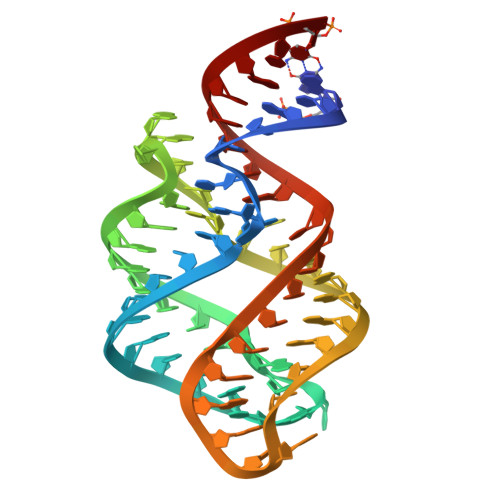

RNA (65-MER)A [auth X]65synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.28 Å
  • R-Value Free:  0.226 (Depositor), 0.225 (DCC)
  • R-Value Work:  0.212 (Depositor), 0.212 (DCC)
  • R-Value Observed: 0.213 (Depositor)
Space Group: I 2 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 49.485α = 90
b = 71.232β = 90
c = 115.653γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
Aimlessdata scaling
PDB_EXTRACTdata extraction
PHASERphasing
HKL-3000data reduction

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China--

Revision History  (Full details and data files)

  • Version 1.0: 2025-08-20
    Type: Initial release
