9N5E | pdb_00009n5e

RNA polymerase II elongation complex with 8-oxoG at +1 site, AMPCPP in E-site


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.75 Å
  • R-Value Free:
    0.291 (Depositor), 0.291 (DCC)
  • R-Value Work:
    0.248 (Depositor), 0.249 (DCC)
  • R-Value Observed:
    0.250 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history


Literature

Transcription-Coupled Template Reconfiguration of 8-Oxoguanine for Error-Prone Transcription Revealed by Time-Resolved X-ray Crystallography and Molecular Dynamics.

Oh, J.Konovalov, K.A.Hou, P.Chong, J.Huang, X.Wang, D.

(2025) J Am Chem Soc 147: 16396-16403

  • DOI: https://doi.org/10.1021/jacs.5c02687
  • Primary Citation of Related Structures:
    9N5B, 9N5C, 9N5D, 9N5E, 9N5F, 9N5G

  • PubMed Abstract:

    Oxidative DNA damage, particularly 8-oxoguanine (8OG), is a significant contributor to transcriptional errors that can alter the cellular phenotype and cell fate. While previous studies proposed that 8OG can use its anti-conformation or syn-conformation to form distinct base pairs with different substrates, it is not clear what conformation 8OG adopts during the template loading step and how different substrates induce transcription-coupled conformational changes of the 8OG template within the active site. Through a combined approach of time-resolved X-ray crystallography and molecular dynamics (MD) simulations, our study provides a comprehensive insight into these important questions. We found that the 8OG template behaves very differently for error-free and error-prone transcription. For error-free CTP incorporation, 8OG remains in anti-conformation during template loading, nucleotide binding, and incorporation steps. As for error-prone ATP incorporation, using time-resolved crystallography, we observed that the 8OG template initially adopts anti-conformation during template loading and the initial nucleotide binding step. However, it transitions to the syn-conformation to form a base pair with incoming ATP over the course of the reaction. Eventually, we observed a post-chemistry state where 8OG adopts the syn-conformation, base-paired with newly incorporated AMP. MD simulations further revealed that the 8OG template switches from an anti- to a syn-conformation by partially backtracking and subsequently reloading into the +1 site. These findings significantly contribute to our understanding of how RNA polymerase II navigates 8OG lesions during transcription, shedding light on transcription fidelity control and the lesion bypass of oxidative DNA damage.


  • Organizational Affiliation
    • Division of Pharmaceutical Sciences, Skaggs School of Pharmacy and Pharmaceutical Sciences, University of California, San Diego, La Jolla, California 92093, United States.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase II subunit RPB1D [auth A]1,733Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: RPO21RPB1RPB220SUA8YDL140CD2150
EC: 2.7.7.6
UniProt
Find proteins for P04050 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P04050
Go to UniProtKB:  P04050
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP04050
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage

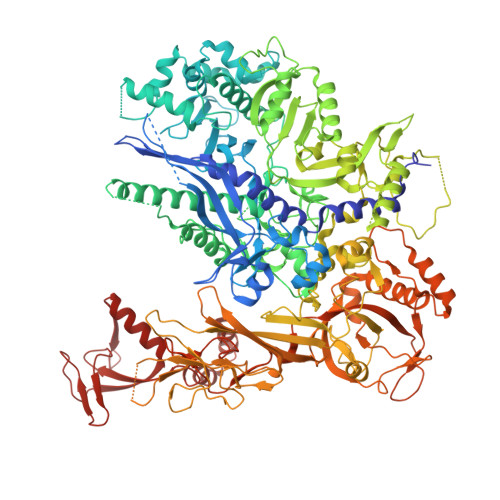

DNA-directed RNA polymerase II subunit RPB2E [auth B]1,224Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: RPB2RPB150RPO22YOR151C
EC: 2.7.7.6
UniProt
Find proteins for P08518 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P08518
Go to UniProtKB:  P08518
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP08518
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage

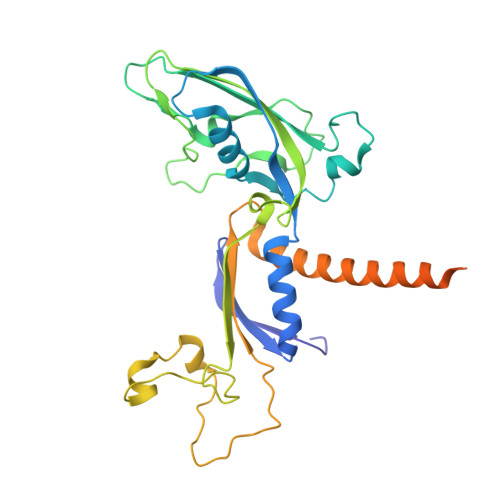

DNA-directed RNA polymerase II subunit RPB3F [auth C]318Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: RPB3YIL021W
UniProt
Find proteins for P16370 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P16370
Go to UniProtKB:  P16370
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP16370
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage

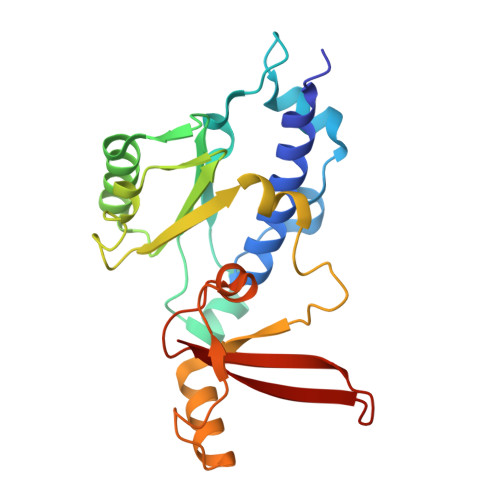

DNA-directed RNA polymerases I, II, and III subunit RPABC1G [auth E]215Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: RPB5RPA7RPC9YBR154CYBR1204
UniProt
Find proteins for P20434 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P20434
Go to UniProtKB:  P20434
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP20434
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC2H [auth F]155Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: RPO26RPB6YPR187WP9677.8
UniProt
Find proteins for P20435 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P20435
Go to UniProtKB:  P20435
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP20435
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage

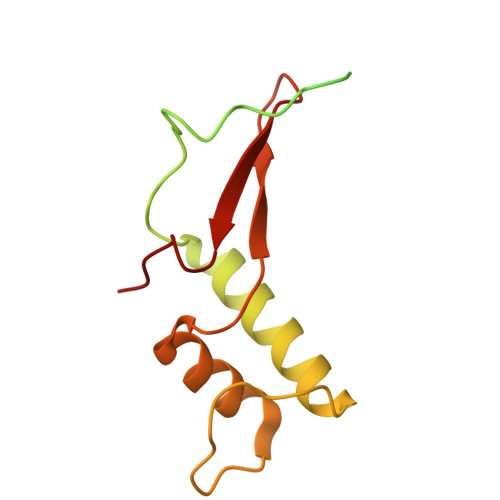

DNA-directed RNA polymerases I, II, and III subunit RPABC3I [auth H]146Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: RPB8YOR224CYOR50-14
UniProt
Find proteins for P20436 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P20436
Go to UniProtKB:  P20436
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP20436
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage

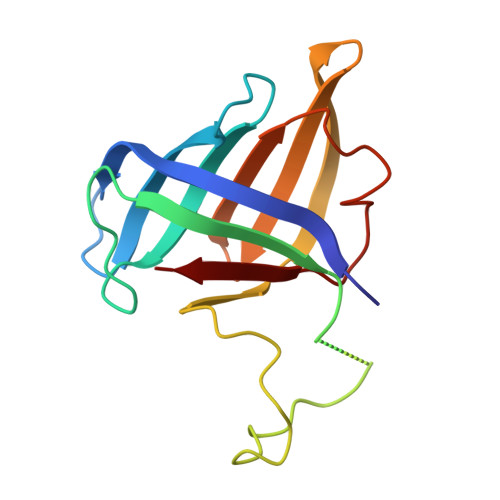

DNA-directed RNA polymerase II subunit RPB9J [auth I]122Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: RPB9YGL070C
UniProt
Find proteins for P27999 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P27999
Go to UniProtKB:  P27999
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP27999
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage

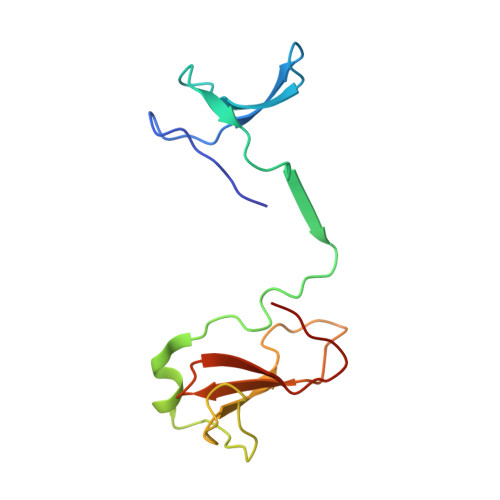

DNA-directed RNA polymerases I, II, and III subunit RPABC5K [auth J]70Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: RPB10YOR210W
UniProt
Find proteins for P22139 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P22139
Go to UniProtKB:  P22139
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP22139
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase II subunit RPB11L [auth K]120Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: RPB11YOL005C
UniProt
Find proteins for P38902 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P38902
Go to UniProtKB:  P38902
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP38902
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 13
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC4M [auth L]70Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: RPC10RPB12YHR143W-AYHR143BW
UniProt
Find proteins for P40422 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P40422
Go to UniProtKB:  P40422
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP40422
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 1
MoleculeChains LengthOrganismImage

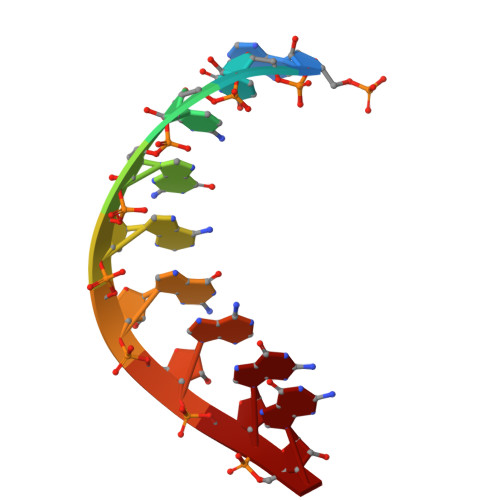

RNAA [auth R]9synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains LengthOrganismImage
Template strand DNAB [auth T]29synthetic construct
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 3
MoleculeChains LengthOrganismImage

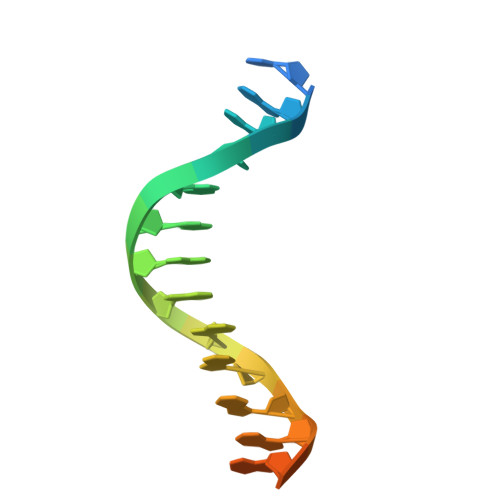

Non-template strand DNAC [auth N]18synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
APC (Subject of Investigation/LOI)
Query on APC

Download Ideal Coordinates CCD File
R [auth B]DIPHOSPHOMETHYLPHOSPHONIC ACID ADENOSYL ESTER
C11 H18 N5 O12 P3
CAWZRIXWFRFUQB-IOSLPCCCSA-N
ZN
Query on ZN

Download Ideal Coordinates CCD File
N [auth A]
O [auth A]
Q [auth B]
S [auth C]
T [auth I]
N [auth A],
O [auth A],
Q [auth B],
S [auth C],
T [auth I],
U [auth I],
V [auth J],
W [auth L]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
MG
Query on MG

Download Ideal Coordinates CCD File
P [auth A]MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.75 Å
  • R-Value Free:  0.291 (Depositor), 0.291 (DCC)
  • R-Value Work:  0.248 (Depositor), 0.249 (DCC)
  • R-Value Observed: 0.250 (Depositor)
Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 164.718α = 90
b = 222.926β = 99.2
c = 193.285γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
Aimlessdata scaling
XDSdata reduction
PHENIXphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesR01 GM102362
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesR01 GM147652
National Research Foundation (NRF, Korea)Korea, Republic OfRS-2024-00344054

Revision History  (Full details and data files)

  • Version 1.0: 2025-08-13
    Type: Initial release
