9JWX | pdb_00009jwx

NifS soaked with(2R,3R)-3-ethoxycarbonylaziridine-2-carboxylic acid

PDB DOI: https://doi.org/10.2210/pdb9JWX/pdb

Classification: BIOSYNTHETIC PROTEIN
Organism(s): Helicobacter pylori 26695
Expression System: Escherichia coli BL21(DE3)
Mutation(s): Yes

Deposited: 2024-10-11 Released: 2025-07-16
Deposition Author(s): Otsuka, H., Nakamura, R., Fujishiro, T.
Funding Organization(s): Japan Society for the Promotion of Science (JSPS), New Energy and Industrial Technology Development Organization (NEDO)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.80 Å
R-Value Free:
0.243 (Depositor), 0.245 (DCC)
R-Value Work:
0.203 (Depositor), 0.205 (DCC)
R-Value Observed:
0.205 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Discovery of an Aziridine-Based Inhibitor That Targets Cysteine Desulfurase Type II SufS via High-Throughput X-ray Crystallography

Fujishiro, T., Otsuka, H., Nakamura, R., Fujihara, T.

(2025) ACS Med Chem Lett

DOI: https://doi.org/10.1021/acsmedchemlett.5c00168

Macromolecule Content

Total Structure Weight: 44.45 kDa
Atom Count: 2,825
Modeled Residue Count: 362
Deposited Residue Count: 401
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

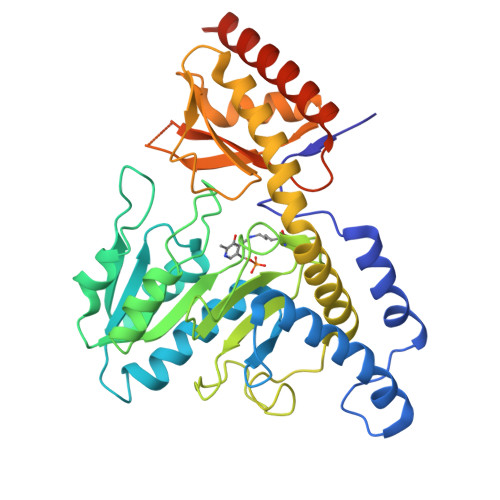

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Cysteine desulfurase IscS	A	401	Helicobacter pylori 26695	Mutation(s): 2 Gene Names: iscS, HP_0220 EC: 2.8.1.7
UniProt
Find proteins for O25008 (Helicobacter pylori (strain ATCC 700392 / 26695)) Explore O25008 Go to UniProtKB: O25008
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	O25008
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
IPA Query on IPA Download Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	ISOPROPYL ALCOHOL C₃ H₈ O KFZMGEQAYNKOFK-UHFFFAOYSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]
CL Query on CL Download Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]

Modified Residues 1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
LLP Query on LLP	A	L-PEPTIDE LINKING	C₁₄ H₂₂ N₃ O₇ P		LYS

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.80 Å
R-Value Free: 0.243 (Depositor), 0.245 (DCC)
R-Value Work: 0.203 (Depositor), 0.205 (DCC)
R-Value Observed: 0.205 (Depositor)

Space Group: P 4₁ 2₁ 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 103.18	α = 90
b = 103.18	β = 90
c = 133.35	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
XSCALE	data scaling
XDS	data reduction
PHASER	phasing

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2025-07-16

Deposition Author(s):

Funding Organization	Location	Grant Number
Japan Society for the Promotion of Science (JSPS)	Japan	23H04542
New Energy and Industrial Technology Development Organization (NEDO)	Japan	22100875-0

Revision History (Full details and data files)

Version 1.0: 2025-07-16
Type: Initial release
